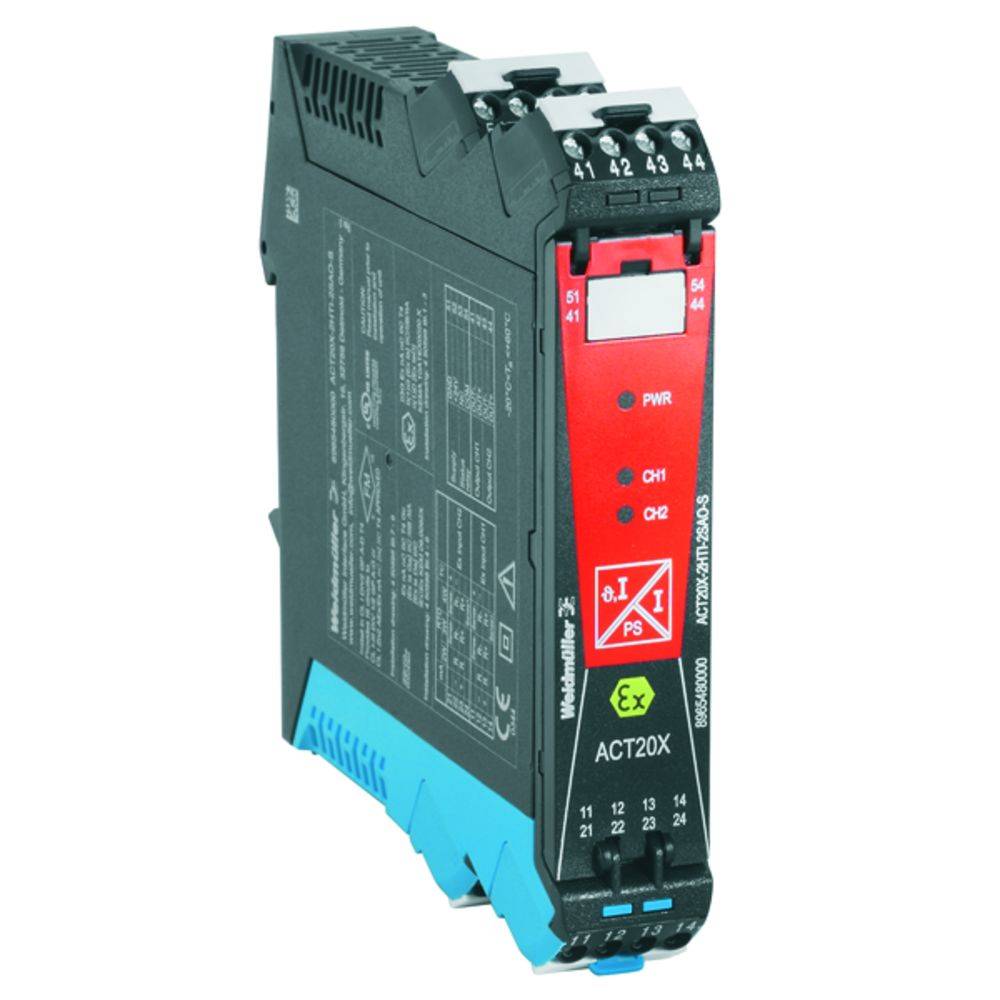

Weidmüller ACT20X-HUI-SAO-S 8965490000 Transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
ACT20X-HUI-SAO-S
Dim
(L x W) 119.2 mm x 22.5 mm
Content
1 pc(s)
Width
22.5 mm
Datasheet (PDF)
Highlights & Details
Ex-Signalwandler/disconnector
- ACT20X-HUI-SAO-S
Technical specifications
- Type
ACT20X-HUI-SAO-S
- Product type
Transducer
- Dim
(L x W) 119.2 mm x 22.5 mm
- Content
1 pc(s)
- Width
22.5 mm
- Length
119.2 mm
- RoHS-compliant
Yes
- Depth
113.6 mm
- Type
ACT20X-HUI-SAO-S
- Weight
180 g
22.5
119.2 mm
113.6 mm
3 W
-20-60 °C
Screw connection
IP20
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258861 Weidmüller ACT20X-HUI-SAO-S 8965490000 Transducer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258861 Weidmüller ACT20X-HUI-SAO-S 8965490000 Transducer 1 pc(s)
Description
Ex-Signalwandler/disconnector. ACT20X, 1-channel version. The universal measurement and signal isolating transformer ACT 20 X HUI-SAO-S/SAO-LP can be configured individually. Temperature signals of PT100 sensors and thermal elements as well as analogue DC current and voltage signals can be recorded from the Ex zone 0. The output side are optionally current/voltage (SAO-S) or 4...20 mA current loop signals (SAO-LP/SAO-S)) for the safe area. The ACT20X-HUI-SAO-S has an additional relay output, in which the switching threshold can be configured. An integrated alarm contact, in case of this device in the event of a fault status messages that enable a fast error identification and thus increase system availability. The power supply to the signalling isolating converter is operated either via the built-in power supply (SAO-S) or older natively on the output side current loop (SAO-LP). The rail mountable devices are single-channel and optionally in the widths 12.5 mm (SAO-LP) or 22.5 mm (SAO-s) available..
