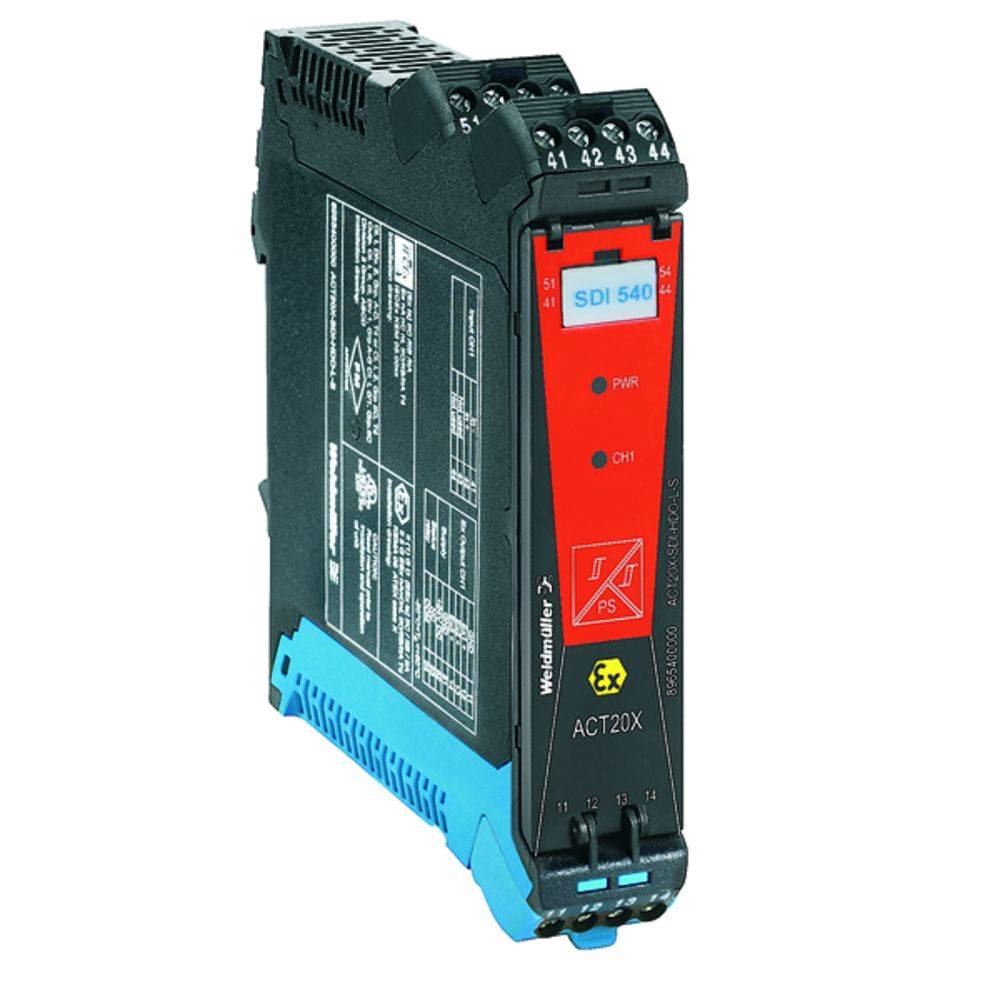

Weidmüller ACT20X-SDI-HDO-H-S 8965410000 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (voltage) (max.)
10 V
Type
ACT20X-SDI-HDO-H-S
Dim
(L x W x H) 113.6 x 22.5 x 119.2 mm
Connection
Screws
Datasheet (PDF)
Highlights & Details
Ex-Signalwandler/disconnector
- ACT20X-SDI HDO-H-S
Technical specifications
- Net weight 170 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -20 °C to +85 °C.
- Number of inputs: 1
- Protection class: IP20
- Continuous current < 0.5 A AC/0.3 A DC (safe range), < 0.5 A AC/1 A DC (zone 2)
- Rated power < 62.5 VA/32 W (safe range), < 16 VA/32 W (zone 2)
- Input type: NPN-, PNP- transistor, switching signal
- Power consumption: 2.5 W
- Jump response time: 10 ms
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 12
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Nominal switching voltage < 125 V/AC/110 V/DC (safe range), < 32 V/AC/32 V/DC (zone 2)
- Type
ACT20X-SDI-HDO-H-S
- Product type
Signal converter
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 113.6 x 22.5 x 119.2 mm
- Connection
Screws
- Output (current)
60 mA
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Input signal (voltage)
10 V/DC
- Input resistance
3.5 kΩ
- Content
1 pc(s)
- Configuration
Software
- Width
22.5 mm
- Height
119.2 mm
- Length
113.6 mm
- RoHS-compliant
Yes
- Supply voltage (num.)
31.2 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Depth
113.6 mm
- Type
ACT20X-SDI HDO-H-S
- Weight
170 g
22.5
119.2 mm
113.6 mm
3 W
-20-60 °C
Screw connection
IP20
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258853 Weidmüller ACT20X-SDI-HDO-H-S 8965410000 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258853 Weidmüller ACT20X-SDI-HDO-H-S 8965410000 Signal converter 1 pc(s)
Description
Ex-Signalwandler/disconnector. ACT20X, 1-channel version for ignition Group IIB< 60mA. The Valve Control Blocks ACT20X-SDI HDO/2 SDI-2 HDO are on the input side by switching signals (NPN, PNP) from the safe area controlled and offer digital outputs for switching actuators (solenoid valves, alarm) in Ex zone 0. The output current is module-specific for the ignition protection groups IIC/IIB to 35 mA or 60 mA (only single-channel). Integrated alarm contacts, in the event of a fault status messages that enable a fast error identification and thus increase system availability. The rail mountable isolating switch amplifier are optionally available in one or two-channel design. With 11 mm width per channel, these devices have very little space in the control cabinet.
