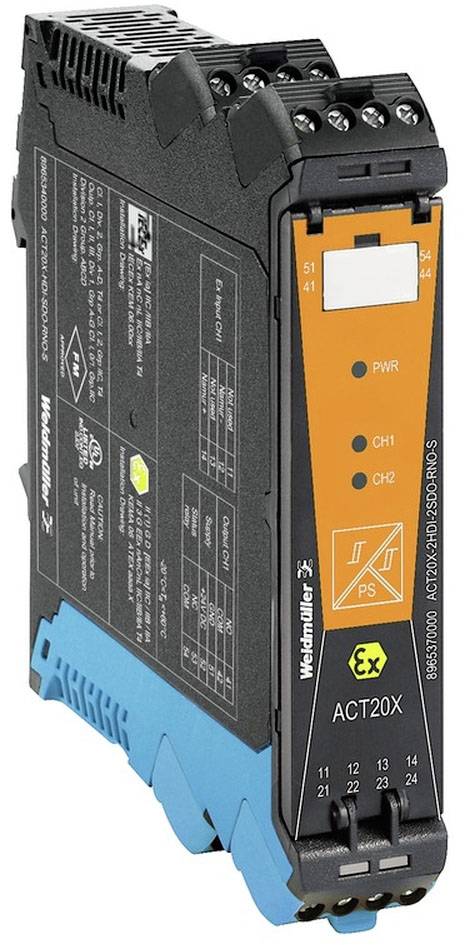

Weidmüller ACT20X-SDI-HDO-L-P 2456110000 Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Type
ACT20X-SDI-HDO-L-P
Dim
(W x H) 22.5 mm x 127.1 mm
Connection
Push-in connector
Output (voltage)
0 V
Technical specifications
- Depth: 113.6 mm
- Operating temperature: -20 °C...60 °C
- Number of inputs: 1
- Insulation voltage: 2.6 kV (input / output)
- Power consumption: ≤ 1.9 W
- Protection class: IP20
- conductor cross-section AWG, min.: 26
- conductor cross-section AWG, max.: 14
- Type
ACT20X-SDI-HDO-L-P
- Product type
Isolation amplifier
- Dim
(W x H) 22.5 mm x 127.1 mm
- Connection
Push-in connector
- Output (voltage)
0 V
- Output (current)
max. 35 mA
- Operating voltage
19.2 - 31.2 V DC
- Max. operating voltage
31.2 V DC
- Min. operating voltage
19.2 V DC
- Input signal (current)
4 mA ... 20 mA
- Content
1 pc(s)
- Configuration
Software
- Width
22.5 mm
- Height
127.1 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
19,2…31,2 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2240675 Weidmüller ACT20X-SDI-HDO-L-P 2456110000 Isolation amplifier 1 pc(s)
