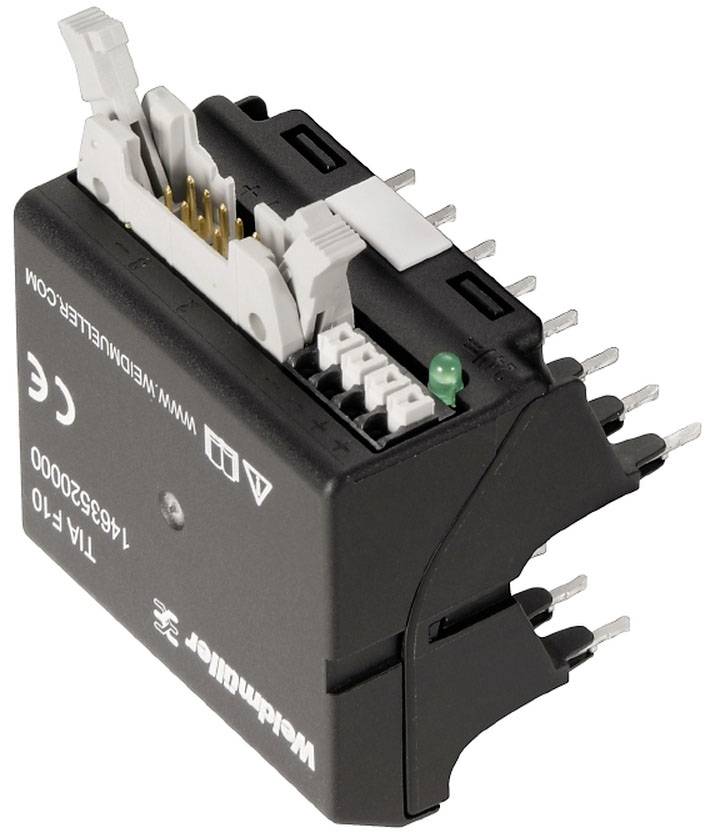

Weidmüller Adapter + LED display TIA F10 Colours (LEDs): Green Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Adapter
Max. operating voltage
30 V DC
Case colour
Black
Colour
Green
Technical specifications
- Conductor connection technology: PUSH IN
- number of signal paths: 8
- nominal current (per signal path): 125 mA
- current (per signal path), max.: 1 A
- total current of all signals, max.: 1 A
- flammability class according to UL 94: V-0
- pollution degree: 2
- overvoltage category: III
- surge voltage: 1.5 kV
- Number of terminals: 4 (+,+,−,−)
- terminal range, rated connection, min.: 0.13 mm²
- terminal range, max. 1.5 mm²
- blade dimension (supply): 0.6 x 3.5 mm
- plug type: Plug, long locking lever
- Packaging type
Piece
- Product type
Adapter
- Features
+ LED display
- Type
TIA F10
- Content
1 pc(s)
- Number of pins
10
- Operating voltage
24 V DC
- Max. operating voltage
30 V DC
- Operating voltage
30 V DC (max)
- Case colour
Black
- Colour
Green
- Min. temperature
-40 °C
- Max. temperature
+60 °C
IP20 (when built in)
- Width
51 mm
- Height
43 mm
- Length
62 mm
- Dim
(L x W x H) 62 x 51 x 43 mm
- Weight
49.35 g
DIN rail (top hat rail) 35 mm
51
43 mm
62 mm
125 A
24 V
2
- UKCA
yes
