Name: Weidmüller AIE MULTI-STRIPAX PV 1204280000 Crimp inset PV cables 2.5 up to 6 mm² Suitable for brand (pliers) Weidmüller
Brand: Weidmüller
SKU: 201593

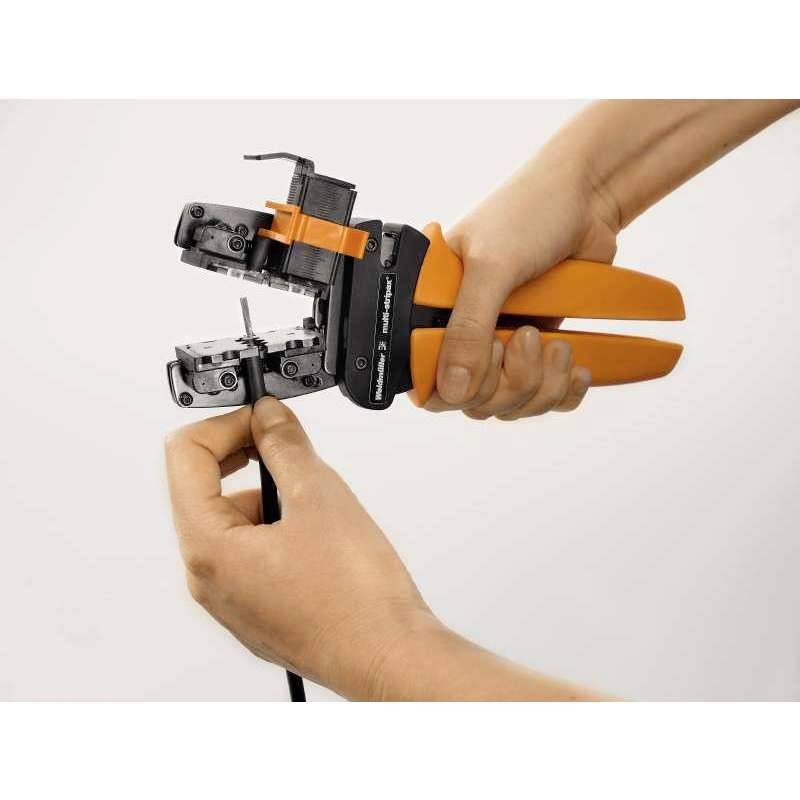

A person is using an orange crimping tool to secure a cable connection. Hands are holding the crimper and the cable.

Application

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Crimp insert for STRIPAX-pliers

AIE MULTI-STRIPAX PV

Technical specifications

Stripping length, min: 2 mm

Product type: Crimp inset

Manufacturer part #: 1204280000

Range of uses: PV cables

Crimp area (min.): 2.5 mm²

Crimp area (max.): 6 mm²

Length: 30 mm

Width: 41 mm

Height: 3 mm

Weight: 74 g

Suitable for: Weidmüller

Suited for model: 1190490000

Crimp area: 2.5 up to 6 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 201593 Weidmüller AIE MULTI-STRIPAX PV 1204280000 Crimp inset PV cables 2.5 up to 6 mm² Suitable for brand (pliers) Weidmüller

User & Safety Instructions

User & Safety Instructions 201593 Weidmüller AIE MULTI-STRIPAX PV 1204280000 Crimp inset PV cables 2.5 up to 6 mm² Suitable for brand (pliers) Weidmüller

Description

Insert for STRIPAX-clamp-on ammeter. 6 mm². For fine-stranded and solid conductors with special insulation materials. High stripping quality for industrial application (according to request from the aviation). Conductor insulation stripping knife enable the special special form and the conductor structures. Stripping length with stop can be set. High flexibility by interchangeable stripping units. High repeatability of the stripping results. No damage to the conductor. High stability for long life and high reliability. Integrated cutting function.
