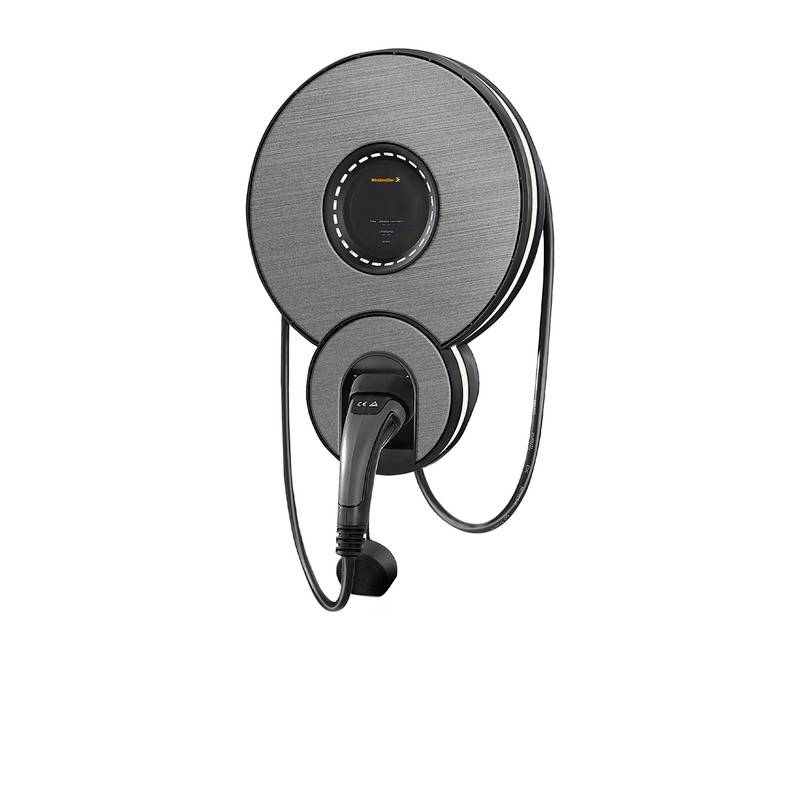

Weidmüller CH-W-H-A22-PPNZZR Wallbox Type 2 Mode 3 32 A No. of ports 1 x 22 kW RFID
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
32 A
- No. of ports
1 x
- Charging capacity
22 kW
- No. of phases
3-phase
- Cable length
5 m
Wall mounting
351 mm
486 mm
109 mm
Plastic
IK08
IP54
TRUE
FALSE
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2853020 Weidmüller CH-W-H-A22-PPNZZR Wallbox Type 2 Mode 3 32 A No. of ports 1 x 22 kW RFID
Description
Mode 3 AC Wallbox HOME Premium with a maximum charging power of 22 kW at 3-phase (400 V) power supply, maximum charging current of 32 A, with fixed 5 m long cable and type 2 connector, built-in 6 mA fault detection, digital input and mode RTU communication, RFID reader for user authentication, robust IP54 housing, Clearly visible LED ring for status display, integrated cable and plug storage for secure parking position, individually designed design aperture (optional as an accessory), modular housing concept for quick and easy installation, load management via DI and RTU mode, Modbus RTU communication.
