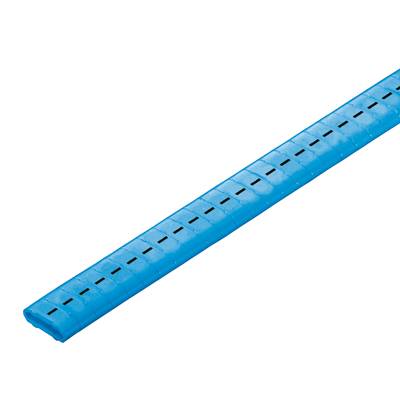

Weidmüller CLI C 1-3 BL/SW N CD Ring Imprint N Outside diameter range 2.5 up to 5 mm 1568251664
EAN:
Part number:
Item no:
Product type
Ring
Imprint
N
Suitable for outside Ø (min.)
2.5 mm
Suitable for outside Ø (max.)
5 mm
Dim
(L x W x H) 5 x 4.2 x 3 mm
Datasheet (PDF)
Highlights & Details
Lead marker cable line ® CLI C
- No. of markers: 500
- Imprint: N
Our service for you
Technical specifications
- Net weight: 0.082 g
- Printing color: White
- Printing method: Hot embossed
- Material color according to resistance code: 6
- Orientation of imprint: Horizontal
- conductor cross-section, max.: 4 mm²
- conductor cross-section, min.: 1.5 mm²
- Product type
Ring
- Dim
(L x W x H) 5 x 4.2 x 3 mm
- Imprint
N
- Type
Special characters
- Series
CableLine® CLI C
- Factory colour
Blue
- Material
PVC
- Suitable for outside Ø (min.)
2.5 mm
- Suitable for outside Ø (max.)
5 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Features
UL94 flammability rating
halogen-free
- No. of markers
500
- Outside diameter range
2.5 up to 5 mm
- Colour-coded
Yes
- Halogen-free
Yes
- Manufacturer part #
1568251664
- Industrial packaging
Yes
- Content
500 pc(s)
- Width
4.2 mm
- Height
3 mm
- Length
5 mm
- Dimensions
3 x 4.2 mm
- Features
Highly flexible
- Fitting type
Slide-on
- Series
CLI C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 322826 Weidmüller CLI C 1-3 BL/SW N CD Ring Imprint N Outside diameter range 2.5 up to 5 mm 1568251664
User & Safety Instructions
User & Safety Instructions 322826 Weidmüller CLI C 1-3 BL/SW N CD Ring Imprint N Outside diameter range 2.5 up to 5 mm 1568251664
Description
Lead marker. 3 x 4.2 mm, PVC, soft, without cadmium, color: blue. CLI C-lead marker are not connected conductor mounted. Conductor cross-sections of 0.5 mm² up to a maximum of 70 mm² can be with four different sizes. The markers are printed. Closed marker, safe and adjusted to non-connected lines. Wide area of use by means of a special bellows profile with spring effect. Fast, easy mounting with a flick of the wrist. Permanent marking of high quality. Best contrasts for optimum readability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- roller
