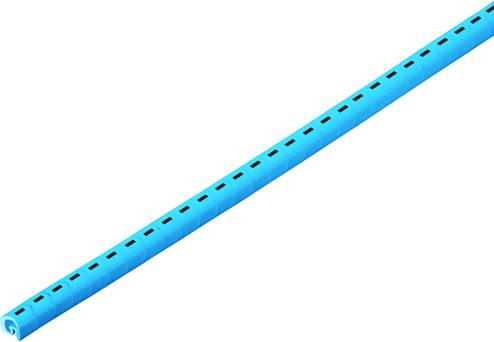

Weidmüller CLI C 2-6 GE/SW L3 MP Ring Imprint L3 Outside diameter range 4 up to 10 mm 1871891730
EAN:
Part number:
Item no:
Product type
Ring
Imprint
L3
Suitable for outside Ø (min.)
4 mm
Suitable for outside Ø (max.)
10 mm
Dim
(L x W x H) 8 x 7 x 6 mm
Datasheet (PDF)
Highlights & Details
Lead marker
- No. of markers: 100
- Imprint: L3
Our service for you
Technical specifications
- Net weight: 0.23 g
- Printing color: Black
- Printing method: Hot embossed
- Material color according to resistance code: 4
- Orientation of the imprint: Horizontal
- Insulation diameter, max.: 10 mm
- conductor cross-section, max.: 16 mm²
- conductor cross-section, min.: 2.5 mm²
- Product type
Ring
- Dim
(L x W x H) 8 x 7 x 6 mm
- Imprint
L3
- Type
Letters
Numbers
- Series
CableLine® CLI C
- Factory colour
Yellow
- Material
PVC
- Suitable for outside Ø (min.)
4 mm
- Suitable for outside Ø (max.)
10 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Features
UL94 flammability rating
halogen-free
- No. of markers
100
- Outside diameter range
4 up to 10 mm
- Colour-coded
Yes
- Halogen-free
Yes
- Manufacturer part #
1871891730
- Industrial packaging
Yes
- Content
100 pc(s)
- Width
7 mm
- Height
6 mm
- Length
8 mm
- UKCA
not relevant
