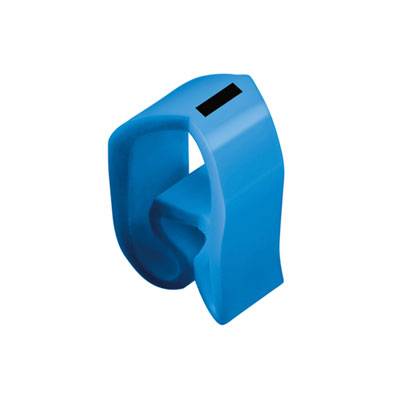

Weidmüller CLI C 3-6 BL/SW - MP Ring Imprint - Outside diameter range 8 up to 16 mm 0253411741
EAN:
Part number:
Item no:
Product type
Ring
Imprint
-
Suitable for outside Ø (min.)
8 mm
Suitable for outside Ø (max.)
16 mm
Dim
(L x W x H) 17 x 11 x 6 mm
Datasheet (PDF)
Highlights & Details
Lead marker cable line ® CLI C
- Number of markers: 20
- Printed: -
Our service for you
Technical specifications
- Net weight: 0.75 g
- Printing color: White
- Printing method: Hot embossed
- Material color according to resistance code: 6
- Orientation of the imprint: Horizontal
- Insulation diameter, max.: 16 mm
- conductor cross-section, max.: 70 mm²
- conductor cross-section, min.: 16 mm²
- Product type
Ring
- Dim
(L x W x H) 17 x 11 x 6 mm
- Imprint
-
- Type
Special characters
- Series
CableLine® CLI C
- Factory colour
Blue
- Material
PVC
- Suitable for outside Ø (min.)
8 mm
- Suitable for outside Ø (max.)
16 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Features
UL94 flammability rating
halogen-free
- No. of markers
20
- Outside diameter range
8 up to 16 mm
- Colour-coded
Yes
- Halogen-free
Yes
- Manufacturer part #
0253411741
- Industrial packaging
Yes
- Content
20 pc(s)
- Width
11 mm
- Height
6 mm
- Length
17 mm
- Dimensions
6 x 11 mm
- Fitting type
Slide-on
- Series
CLI C
- Suitable for diameters
16 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 277535 Weidmüller CLI C 3-6 BL/SW - MP Ring Imprint - Outside diameter range 8 up to 16 mm 0253411741
User & Safety Instructions
User & Safety Instructions 277535 Weidmüller CLI C 3-6 BL/SW - MP Ring Imprint - Outside diameter range 8 up to 16 mm 0253411741
Description
Lead marker. 6 x 11 mm, PVC, soft, without cadmium, color: blue. CLI C-lead marker are not connected conductor mounted. Conductor cross-sections of 0.5 mm² up to a maximum of 70 mm² can be with four different sizes. The markers are printed. Closed marker, safe and adjusted to non-connected lines. Wide area of use by means of a special bellows profile with spring effect. Fast, easy mounting with a flick of the wrist. Permanent marking of high quality. Best contrasts for optimum readability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Multi-Pack
