Weidmüller CLI C 3-6 GE/SW A MP Ring Imprint A Outside diameter range 8 up to 16 mm 0253411637
EAN:
Part number:
Item no:
Fitting type
Slide-on
Writing area length
11 mm
Writing area width
6 mm
Type
CLI C 3-6 GE/SW A MP
Writing area
11 x 6 mm
Datasheet (PDF)
Highlights & Details
Lead marker cable line ® CLI C
- No. of markers: 20
- Imprint: A
Our service for you
Technical specifications
- Net weight: 0.7 g
- Printing color: Black
- Printing method: Hot embossed
- Material color according to resistance code: 4
- Orientation of imprint: Horizontal
- Insulation diameter, max.: 16 mm
- conductor cross-section, max.: 70 mm²
- conductor cross-section, min.: 16 mm²
- Type
CLI C 3-6 GE/SW A MP
- Fitting type
Slide-on
- Writing area length
11 mm
- Writing area width
6 mm
- Writing area
11 x 6 mm
- Material
PVC
- Series
CLI C
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Suitable for outside Ø (min.)
8 mm
- Suitable for outside Ø (max.)
16 mm
- Factory colour
Yellow
- No. of markers
20
- Dim
(L x W x H) 17 x 11 x 6 mm
- Halogen-free
Yes
- Industrial packaging
Yes
- Content
20 pc(s)
- Dimensions
6 x 11 mm mm
- Suitable for diameters
16 mm
- Width
11 mm
- Height
6 mm
- Length
17 mm
- RoHS-compliant
Yes
- Imprint
A
- Features
UL94 flammability rating
halogen-free
- Type
Letters
- Series
CableLine® CLI C
- Colour-coded
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 277497 Weidmüller CLI C 3-6 GE/SW A MP Ring Imprint A Outside diameter range 8 up to 16 mm 0253411637
User & Safety Instructions
User & Safety Instructions 277497 Weidmüller CLI C 3-6 GE/SW A MP Ring Imprint A Outside diameter range 8 up to 16 mm 0253411637
Description

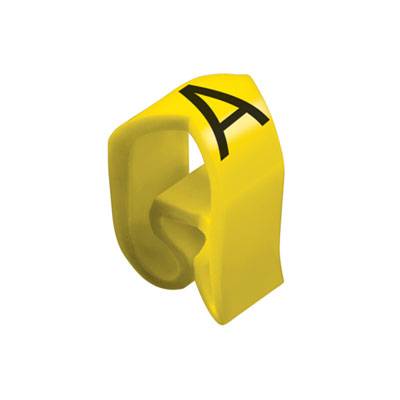

Lead marker. 6 x 11 mm, PVC, soft, without cadmium, color: yellow. CLI C-lead marker are not connected conductor mounted. Conductor cross-sections of 0.5 mm² up to a maximum of 70 mm² can be with four different sizes. The markers are printed. Closed marker, safe and adjusted to non-connected lines. Wide area of use by means of a special bellows profile with spring effect. Fast, easy mounting with a flick of the wrist. Permanent marking of high quality. Best contrasts for optimum readability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Multi-Pack
