Buy Weidmüller CLI R 02-3 RT/SW + Ring Imprint + Outside diameter range 1.3 up to 3 mm 0560001739

Red, elongated object with dark markings, possibly a match or pyrotechnic device.

Product type

Ring

Imprint

Suitable for outside Ø (min.)

1.3 mm

Suitable for outside Ø (max.)

3 mm

Dim

(L x W x H) 4 x 3.4 x 3 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

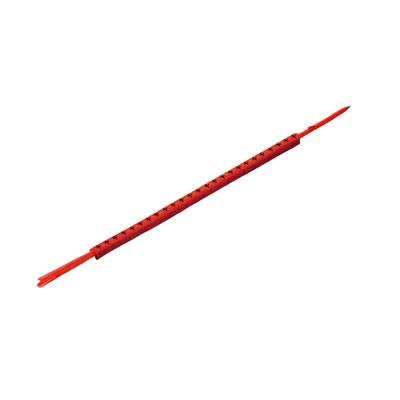

Lead marker with mounting pin cable line ® CLI R

No. of markers: 10
Imprint: +

Our service for you

Technical specifications

Net weight: 1.4 g
Printing color: White
Printing method: Hot embossed
Material color according to resistance code: 2
Orientation of the imprint: Horizontal
conductor cross-section, max.: 1.5 mm²
conductor cross-section, min.: 0.2 mm²
Number of each mandrel: 25

Product type: Ring

Dim: (L x W x H) 4 x 3.4 x 3 mm

Imprint: +

Type: Special characters

Series: CableLine® CLI R

Factory colour: Red

Material: PVC

Suitable for outside Ø (min.): 1.3 mm

Suitable for outside Ø (max.): 3 mm

Min. temperature: -30 °C

Max. temperature: +80 °C

Features: UL94 flammability rating
halogen-free

No. of markers: 10

Outside diameter range: 1.3 up to 3 mm

Colour-coded: Yes

Halogen-free: Yes

Manufacturer part #: 0560001739

Industrial packaging: Yes

Content: 250 pc(s)

Width: 3.4 mm

Height: 3 mm

Length: 4 mm

Documents & Downloads

Datasheet

Datasheet 279158 Weidmüller CLI R 02-3 RT/SW + Ring Imprint + Outside diameter range 1.3 up to 3 mm 0560001739

User & Safety Instructions

User & Safety Instructions 279158 Weidmüller CLI R 02-3 RT/SW + Ring Imprint + Outside diameter range 1.3 up to 3 mm 0560001739

Description

Mounting pin. Lead marker, 3 x 3.4 mm, PVC, soft, without cadmium, Color: red. The Weidmüller product range of conductor and kabelmarkierern offers users solutions for the most diverse applications. The application area ranges from narrow conductors through cables with large outer diameters. The set contains, among other things, combination systems with individual signs, transparent sleeves, heat shrink tubing and marker, which can be attached with cable ties.

This text is machine translated.
