Name: Weidmüller CMA-31-750-5A-5VA-1 2420890000 Single phase current transformer Primary current 750 A Secondary current 5 A L
Brand: Weidmüller
SKU: 1917399

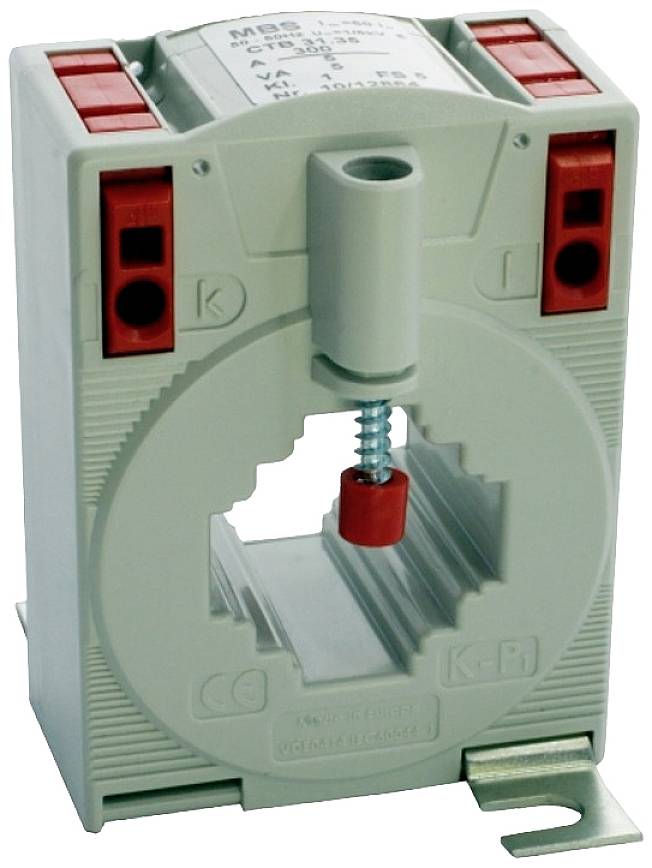

Current transformer in a rectangular shape with red screw fixings and terminals. Used for measuring electrical currents.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Input current (current) 750 A
Output current 5 A
Line feed-through diameter 25.7 mm

Technical specifications

Operating voltage Umax, max. 1.2 kV
Operating temperature: -5 °C...50 °C.
Load 5 VA
Insulation class: E
Storage temperature: -25 °C…70 °C
Nominal frequency 50 Hz
Round conductor 25.7 mm
Rail 20 x 20 mm, 25 x 12 mm, 30 x 10 mm
Depth: 52 mm

Product type: Single phase current transformer

Primary current: 750 A

Secondary current: 5 A

: 5 VA

Line feed-through diameter: 25.7 mm

Accuracy class: 1

Type: CMA-31-750-5A-5VA-1

Dim: (L x W x H) 52 x 60 x 80.9 mm

Weight: 1 g

Output current: 5 A

Input current: 750 A

Line feed-through (W): 30 mm

Line feed-through (H x W): 10 x 30 mm

Line feed-through (H): 10 mm

Width: 60 mm

Height: 80.9 mm

Length: 52 mm

UKCA: yes
