Buy Weidmüller CMA-A20-200-1A-0,5-5VA 3008260000 Current transformer Primary current 200 A Secondary current 1 A Line feed-t

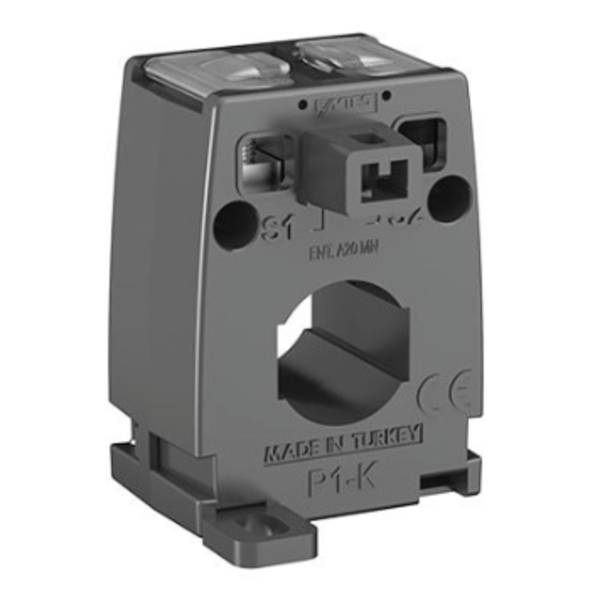

Gray electrical current transformer module with mounting base and central cable opening, labeled 'MADE IN TURKEY' and 'P1-K'.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Current Transformers

Input current (current) 200 A
Output current 1 A
Line feed-through diameter 10.5 mm

Technical specifications

Product type: Current transformer

Primary current: 200 A

Secondary current: 1 A

Line feed-through diameter: 10.5 mm

Accuracy class: 0.5

Type: CMA-A20-200-1A-0,5-5VA

Output current: 1 A

Input current: 200 A

Line feed-through (W): 20 mm

Line feed-through (H x W): 10 x 20 mm

Line feed-through (H): 10 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Line feed-through diameter

Weidmüller CMA-A20-200-1A-0,5-5VA 3008260000 Current transformer Primary current 200 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745780

This article

200 A

10.5 mm

Weidmüller CMA-A20-40-1A-3-1VA 3008140000 Current transformer Primary current 40 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745773

40 A

10.5 mm

Weidmüller CMA-A20-50-1A-3-1VA 3008200000 Current transformer Primary current 50 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745774

50 A

10.5 mm

Weidmüller CMA-A20-60-1A-1-1VA 3008210000 Current transformer Primary current 60 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745775

60 A

10.5 mm

Weidmüller CMA-A20-75-1A-1-1,5VA 3008220000 Current transformer Primary current 75 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745776

75 A

10.5 mm

Weidmüller CMA-A20-100-1A-1-2,5VA 3008230000 Current transformer Primary current 100 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745777

100 A

10.5 mm

Weidmüller CMA-A20-125-1A-0,5-2,5VA 3008240000 Current transformer Primary current 125 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745778

125 A

10.5 mm

Weidmüller CMA-A20-150-1A-0,5-2,5VA 3008250000 Current transformer Primary current 150 A Secondary current 1 A Line feed-through (H x W):10 x 20 mm Line feed-through diameter:10.5 mm 1 pc(s)

Item no:3745779

150 A

10.5 mm

Weidmüller CMA-A30-250-1A-0,5-5VA 3008270000 Current transformer Primary current 250 A Secondary current 1 A Line feed-through (H x W):10 x 30 mm Line feed-through diameter:20 mm 1 pc(s)

Item no:3745781

250 A

20 mm

Weidmüller CMA-A30-300-1A-0,5-5VA 3008280000 Current transformer Primary current 300 A Secondary current 1 A Line feed-through (H x W):10 x 30 mm Line feed-through diameter:20 mm 1 pc(s)

Item no:3745783

300 A

20 mm

Documents & Downloads

Datasheet

Datasheet 3745780 Weidmüller CMA-A20-200-1A-0,5-5VA 3008260000 Current transformer Primary current 200 A Secondary current 1 A Line feed-t

User & Safety Instructions

User & Safety Instructions 3745780 Weidmüller CMA-A20-200-1A-0,5-5VA 3008260000 Current transformer Primary current 200 A Secondary current 1 A Line feed-t

Description

Device for precise measurement of the power consumption of a connected load using true-value effective method. Asymmetrical cable bushing and space saving design.
