Name: Weidmüller CMA-CTM-7-64-1A-0.5VA-1 2556010000 Single phase current transformer Primary current 64 A Secondary current 1
Brand: Weidmüller
SKU: 1951298

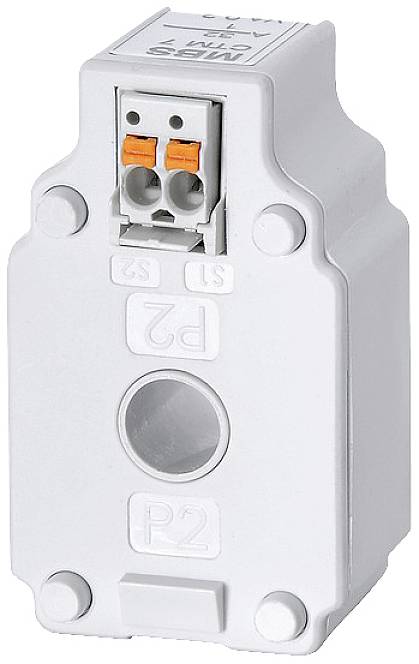

A white electrical component with connections on top and 'P2' underneath. Likely used for mounting and connections.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Input current (current) 64 A
Output current 1 A
Line feed-through diameter 7.6 mm

Technical specifications

Operating voltage Umax, max. 0.72 kV
Operating temperature: -5 °C...50 °C.
Load 0.5 VA
Insulation class: E
Storage temperature: -25 °C…70 °C
Nominal frequency 50 Hz
Round conductor 7.6 mm
Depth: 19 mm

Product type: Single phase current transformer

Primary current: 64 A

Secondary current: 1 A

: 0.5 VA

Line feed-through diameter: 7.6 mm

Accuracy class: 1

Type: CMA-CTM-7-64-1A-0.5VA-1

Dim: (W x H) 27.5 mm x 46.5 mm

Weight: 65 g

Output current: 1 A

Input current: 64 A

Width: 27.5 mm

Height: 46.5 mm

UKCA: yes
