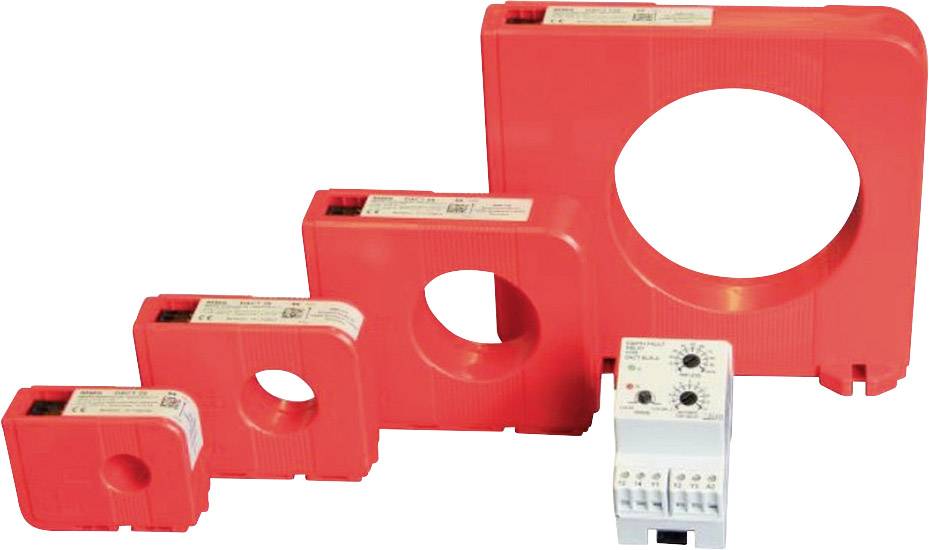

Image similar

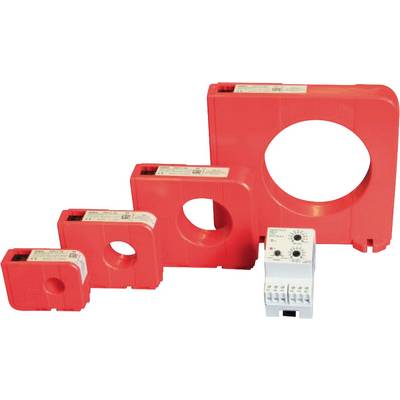

Image similar
Weidmüller CMA-RCM-DACT-120 2603450000 LVDT Primary current 25 A Secondary current 41.7 mA Line feed-through diameter:12
EAN:
Part number:
Item no:
Highlights & Details
- Input current (current) 25 A
- Output current 41.7 mA
- Line feed-through diameter 120 mm
Technical specifications
- Depth: 37 mm
- Max. operating temperature: 70 °C
- Operating temperature, min. -10 °C
- Conductor type: Only insulated conductors
- Differential current measurement: Yes
- Installation location: Indoor use
- Operating voltage Umax, max. 800 V.
- Protection class: IP40
- Coil resistance 8 Ω
- Secondary current, min.: 0.042 A.
- Galvanic isolation: Yes
- Pollution level 3
- Product type
LVDT
- Primary current
25 A
- Secondary current
41.7 mA
- Line feed-through diameter
120 mm
- Accuracy class
1
- Type
CMA-RCM-DACT-120
- Dim
(W x H) 210 mm x 191.5 mm
- Weight
240 g
- Output current
41.7 mA
- Input current
25 A
- Width
210 mm
- Height
191.5 mm
- UKCA
yes
