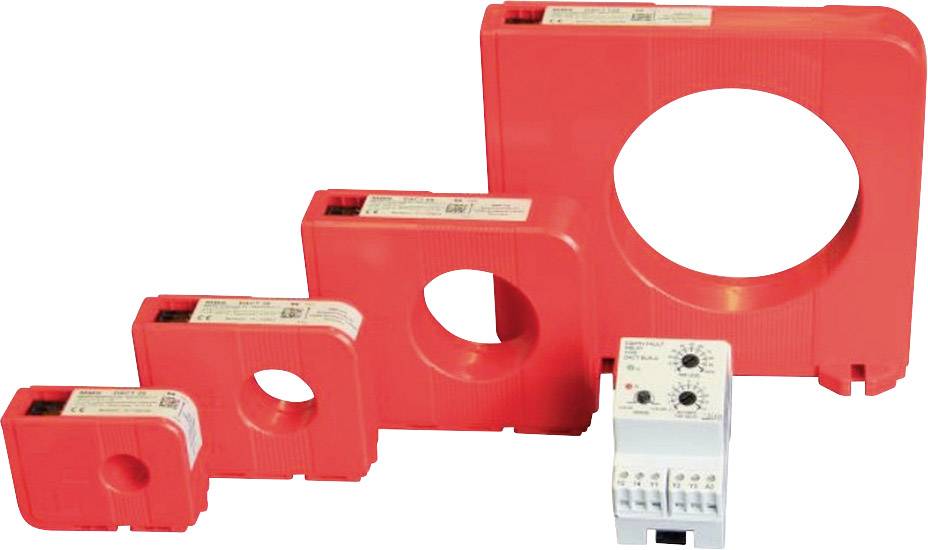

'Red toroidal core transformers in various sizes next to a white electrical device with multiple ports.'

Image similar

'Red toroidal core transformers in various sizes next to a white electrical device with multiple ports.'

Image similar

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Input current (current) 25 A
Output current 0.04 A
Line feed-through diameter 35 mm

Technical specifications

Depth: 30 mm
Max. operating temperature: 70 °C
Operating temperature, min. -10 °C
Conductor type: Only insulated conductors
Differential current measurement: Yes
Installation location: Indoor use
Operating voltage Umax, max. 800 V.
Protection class: IP40
Coil resistance 8 Ω
Secondary current, min.: 0.042 A.
Galvanic isolation: Yes
Pollution level 3

Product type: LVDT

Primary current: 25 A

Secondary current: 41.7 mA

: 0 VA

Line feed-through diameter: 35 mm

Accuracy class: 1

Type: CMA-RCM-DACT-35

Dim: (W x H) 104 mm x 86.5 mm

Weight: 240 g

Output current: 0.04 A

Input current: 25 A

Width: 104 mm

Height: 86.5 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2244189 Weidmüller CMA-RCM-DACT-35 2603430000 LVDT Primary current 25 A Secondary current 41.7 mA Line feed-through diameter:35
