Weidmüller Connector set RockStar® HDC HA 1712630000 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG11
Connection
Screws
Features
+ plastic enclosure
powder-painted
+ PG screw
Series
RockStar® HDC HA
Datasheet (PDF)
Highlights & Details
Rock Star ® HDC-Kit
- 03.404 HDC-KIT-HA
Technical specifications
- Series: HA
- Surface: Powder coating
- Size 1
- Connection type PE: Screw connection
- Tightening torque max. main contact: 0.55 Nm
- Min. Tightening torque Main contact 0.5 Nm
- Product type
Connector set
- Features
+ plastic enclosure
powder-painted
+ PG screw
- Series
RockStar® HDC HA
- Thread size
PG11
- Connection
Screws
- Rated voltage
400 V
- Test current
16 A
- Case material
Aluminium, die cast
- Total no. of pins
3 + PE
- Content
1 pc(s)
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
3
- Width
30 mm
- Height
170 mm
- Length
5 mm
IP65
- Max. temperature
+80 °C
- Min. temperature
-30 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203153 Weidmüller Connector set RockStar® HDC HA 1712630000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203153 Weidmüller Connector set RockStar® HDC HA 1712630000 1 pc(s)
Description
Rock Star ® HDC-kit. Rock Star ® HDC-kits heavy plug connector, Kit, HA, size: 1, poles: 3, screw connection, 250 V, 22 A, PG. HDC-kits are standardized kits to a complete plug connector. The HDC-kits usually consist of male insert, female insert, connector housing, connector housing and cable gland. Weidmüller offers you a selection of the common connector combinations with metric or PG cable input thread. The Conductor Connection level is designed as a screw element. All screw connection elements are equipped with a wire protection spring. Screw connection.
This text is machine translated.
This text is machine translated.

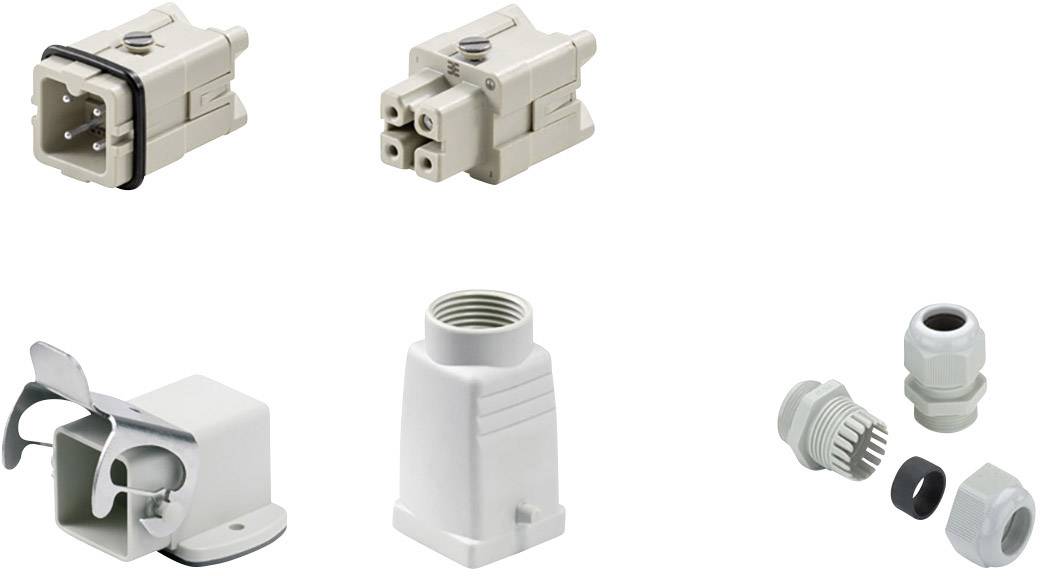

Scope of delivery
- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
