Weidmüller Connector set RockStar® HDC HE 1061780000 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG21
Connection
Push-in connector
Features
+ metal enclosure
powder-painted
+ PG screw
Series
RockStar® HDC HE
Datasheet (PDF)
Highlights & Details
Rock Star ® HDC-Kit
- HDC KIT U P 24.130
Technical specifications
- Series: HE
- Surface: Powder coating
- Size: 8
- Connection type PE: Screw connection
- Product type
Connector set
- Features
+ metal enclosure
powder-painted
+ PG screw
- Series
RockStar® HDC HE
- Thread size
PG21
- Connection
Push-in connector
- Rated voltage
500 V
- Test current
16 A
- Case material
Aluminium, die cast
- Total no. of pins
24 + PE
- Content
1 pc(s)
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
24
IP65
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
Other
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 196312 Weidmüller Connector set RockStar® HDC HE 1061780000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 196312 Weidmüller Connector set RockStar® HDC HE 1061780000 1 pc(s)
Description
Rock Star ® HDC-kit. Rock Star ® HDC-kits heavy plug connector, Kit, hey, size: 8, poles: 1, screw connection, 500 V, 16 A, PG. HDC-kits are standardized kits to a complete plug connector. The HDC-kits usually consist of male insert, female insert, connector housing, connector housing and cable gland. Weidmüller offers you a selection of the common connector combinations with metric or PG cable input thread. The Push-In connection technology is a direct plug-in technique. The Pretreated conductor can be used without additional tools can be inserted directly into the conductor connection level. PUSH-in technology.
This text is machine translated.
This text is machine translated.

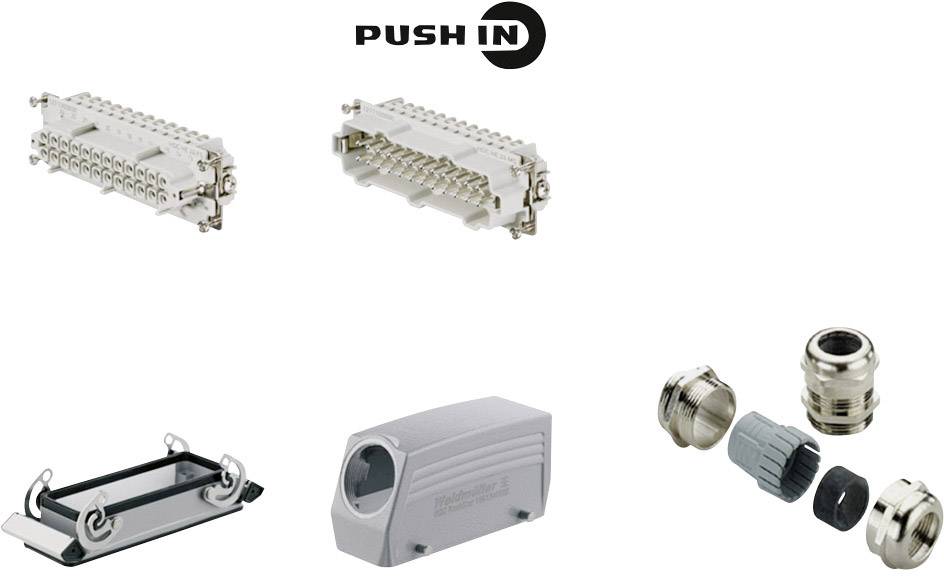

Scope of delivery
- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
