Weidmüller Connector set RockStar® HDC HE 1712510000 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG16
Connection
Screws
Features
+ metal enclosure
powder-painted
+ PG screw
Series
RockStar® HDC HE
Datasheet (PDF)
Highlights & Details
Rock Star ® HDC-Kit
- 10.110 HDC-KIT-U
Technical specifications
- Series: HE
- Surface: Powder coating
- Size: 4
- Type of connection PE: Screw connection
- Tightening torque max. main contact: 0.55 Nm
- Tightening torque min. Main contact 0.5 Nm
- Product type
Connector set
- Features
+ metal enclosure
powder-painted
+ PG screw
- Series
RockStar® HDC HE
- Thread size
PG16
- Connection
Screws
- Rated voltage
500 V
- Test current
16 A
- Case material
Aluminium, die cast
- Total no. of pins
10 + PE
- Content
1 pc(s)
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
10
- Width
145 mm
- Height
160 mm
- Length
70 mm
IP65
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
Screwed
Other
500 V
1
10
Other
Aluminium
Powder coating
-40-100 °C
-40-100 °C
Other
Screw connection
Other
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
Other
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203141 Weidmüller Connector set RockStar® HDC HE 1712510000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203141 Weidmüller Connector set RockStar® HDC HE 1712510000 1 pc(s)
Description
Rock Star ® HDC-kit. Rock Star ® HDC-kits heavy plug connector, Kit, hey, size: 4, Pins: 10, screw connection, 500 V, 16 A, PG. HDC-kits are standardized kits to a complete plug connector. The HDC-kits usually consist of male insert, female insert, connector housing, connector housing and cable gland. Weidmüller offers you a selection of the common connector combinations with metric or PG cable input thread. The Conductor Connection level is designed as a screw element. All screw connection elements are equipped with a wire protection spring. Screw connection.
This text is machine translated.
This text is machine translated.
Scope of delivery

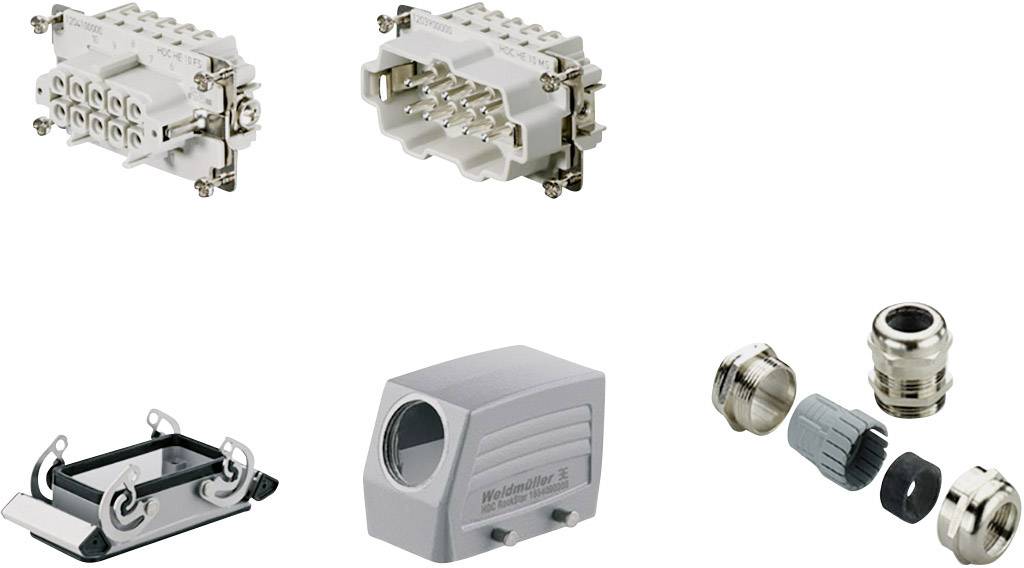

- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
