Weidmüller Connector set RockStar® HDC HSB 1724000000 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG21
Connection
Screws
Features
+ metal enclosure
metric fasteners
Series
RockStar® HDC HSB
Datasheet (PDF)
Highlights & Details
Rock Star ® HDC-Kit
- HDC-KIT-HSB 06.500
Technical specifications
- Series: HSB
- Size: 6
- Type of connection PE: Screw connection
- Tightening torque max. main contact: 1.5 Nm
- Tightening torque min. Main contact 1.2 Nm
- Product type
Connector set
- Features
+ metal enclosure
metric fasteners
- Series
RockStar® HDC HSB
- Thread size
PG21
- Connection
Screws
- Rated voltage
400 V
- Test current
35 A
- Case material
Aluminium, die cast
- Total no. of pins
6 + PE
- Content
1 pc(s)
- Core cross section (max.)
6 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
6
- Width
150 mm
- Height
164 mm
- Length
76 mm
IP65
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203172 Weidmüller Connector set RockStar® HDC HSB 1724000000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203172 Weidmüller Connector set RockStar® HDC HSB 1724000000 1 pc(s)
Description
Rock Star ® HDC-kit. Rock Star ® HDC-kits heavy plug connector, Kit, HSB, size: 6, poles: 6, screw connection, 400 V, 35 A, PG. The Rock Star-kits usually consist of male insert, female insert, connector housing, connector housing and cable gland. Weidmüller offers you a selection of the common connector combinations with metric or PG cable input thread.
This text is machine translated.
This text is machine translated.

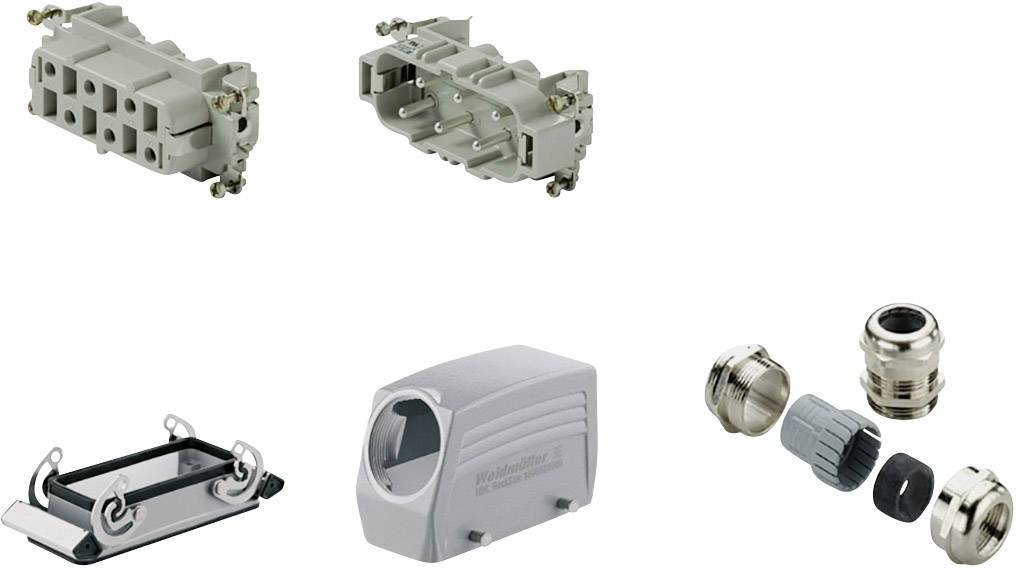

Scope of delivery
- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
