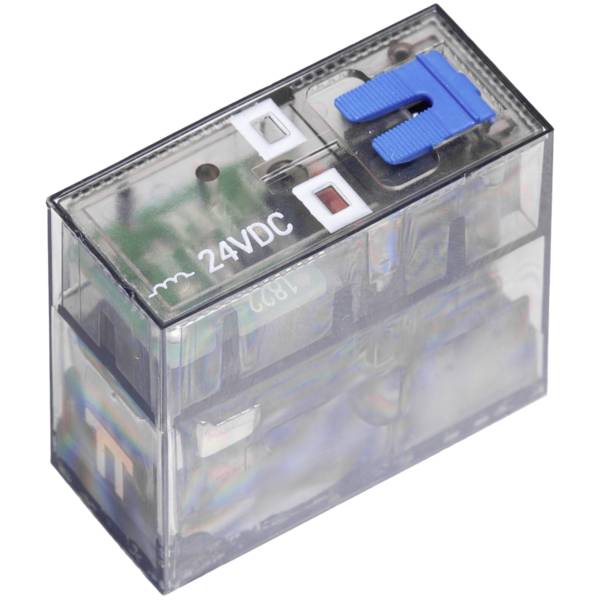

Weidmüller CRI20024T Mini industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs 10 pc(s
EAN:
Part number:
Item no:
Product type
Mini industrial relay
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Switching current (max.)
8 A
Datasheet (PDF)
Technical specifications
- Product type
Mini industrial relay
- Type
CRI20024T
- Connection
Jack connector
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
8 A
- Features
+ test button
- Length
25.5 mm
- Width
13 mm
- Dim
(L x W) 25.5 mm x 13 mm
- Content
10 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3751009 Weidmüller CRI20024T Mini industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs 10 pc(s
User & Safety Instructions
User & Safety Instructions 3751009 Weidmüller CRI20024T Mini industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs 10 pc(s
Description
Relay for switching, amplifying and reproducing digital signals when using low electrical loads. Small design
