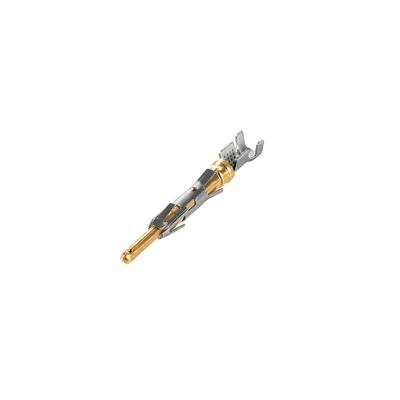

Weidmüller Crimp contact RSV Total number of pins 1 1420600000 250 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Connector type
Pin
No. of rows
1
Series
RSV
Total number of pins
1
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 250 pc(s)
- No. of rows: 1
- Total number of pins: 1
Technical specifications
- Product type
Crimp contact
- Connector type
Pin
- No. of rows
1
- Connector system
wire-to-board
- Series
RSV
- Pins per row
1
- Total number of pins
1
- Width
27.7 mm
- Pin shape
Rectangular
- Content
250 pc(s)
- AWG max.
24
- AWG (min.)
26
- Dim
(L x W x H) 40 x 27.7 x 90 mm
- Connection
Crimp
- Case material
Thermoplastic
- Manufacturer part #
1420600000
- Industrial packaging
Yes
- Insulation material
Thermoplastic
- Contact material
Copper alloy
- Connector contact surface
Gold plated
- Height
90 mm
- Length
40 mm
- max. cross section
0.25 mm²
- Min. cross section
0.14 mm²
- RoHS-compliant
Yes
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
CS1,6E26-24 AU,75 I1,4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 321686 Weidmüller Crimp contact RSV Total number of pins 1 1420600000 250 pc(s)
User & Safety Instructions
User & Safety Instructions 321686 Weidmüller Crimp contact RSV Total number of pins 1 1420600000 250 pc(s)
Description
PCB connector. Crimp contact, single contact, pin-standard, gold-plated, clamping range, max.: 0.25 mm². For the secure Contact Crimp Contacts CB/CS. The combination of the RSV housings and weidmüller crimp contacts allow for an individual adjustment to the specific requirements of the respective application. The following product properties are due to the system are available: secure centring of the contacts through the 3-Segment-pen tip, high contact safety through 4-defined contact points. Snap hook in the steel loading spring for a secure fit of the contacts in the housing. Pin contacts in two lengths, the realization of advanced contacts up to 100 cycles (design tin), up to 500 cycles (Design Gold).
