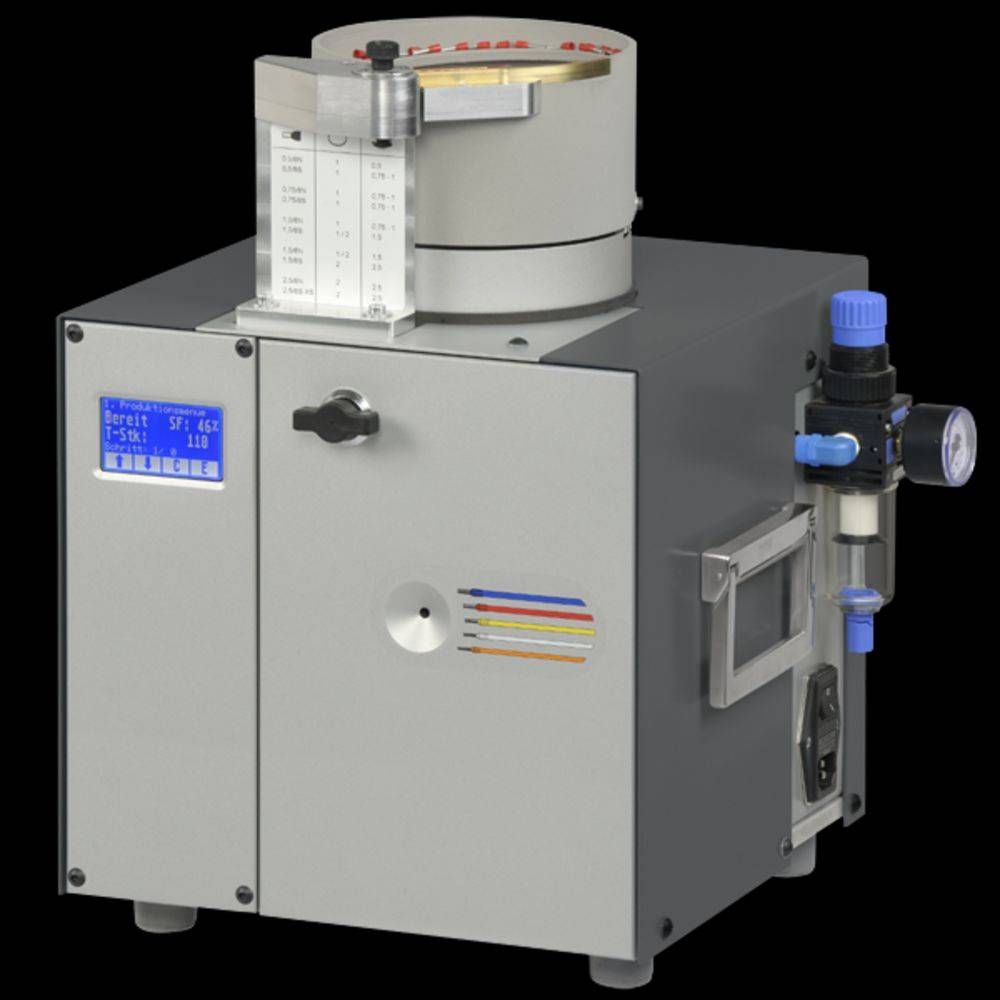

Weidmüller CRIMPFIX LS 9028540000 Automatic crimper/stripper Ferrules 0.5 up to 2.5 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Automatic stripper/crimper
- CRIMPFIX LS
Technical specifications
- Operating voltage: 220 V/50 Hz
- Crimp length: 6/8/10 mm
- Clock time: approx. 1 s
- Wire length: 12/14/16 mm
- Product type
Automatic crimper/stripper
- Manufacturer part #
9028540000
- Range of uses
Ferrules
- Crimp area
0.5 up to 2.5 mm²
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
2.5 mm²
- Length
330 mm
- Width
390 mm
- Height
460 mm
- Weight
31 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259348 Weidmüller CRIMPFIX LS 9028540000 Automatic crimper/stripper Ferrules 0.5 up to 2.5 mm²
User & Safety Instructions
User & Safety Instructions 259348 Weidmüller CRIMPFIX LS 9028540000 Automatic crimper/stripper Ferrules 0.5 up to 2.5 mm²
Description
Automatic stripper/crimper. 0.5 - 2.5 mm², 6/8/10 mm for automatic stripping and crimping. Time-saving and efficient processing of ferrules with and without plastic sleeves, as well as loose, twisted pin and socket contacts. Easy adjustment to the respective cross-section area. Wax and wipe dry with leather in one step.
Hints
This text is machine translated.
