Buy Weidmüller CTN 25 D5 9006230000 Crimper Non-insulated connectors 10 up to 25 mm²

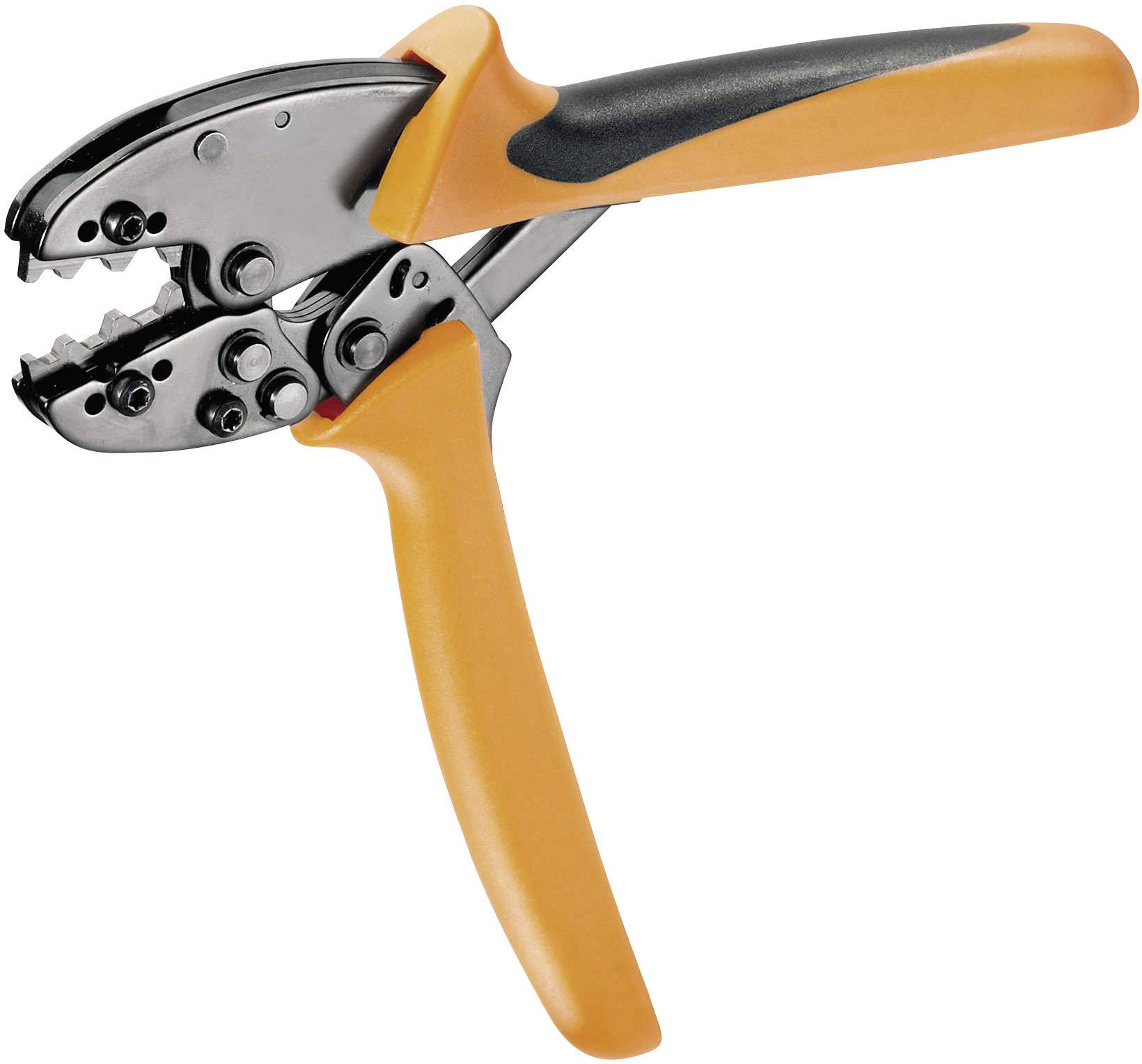

Crimping pliers with an orange and black handle, open, showing metal jaws for pressing cable connections.

A crimping tool in orange with an ergonomic handle can be seen. It is used for connecting cables and connectors.

1/2

Datasheet (PDF)

Dispatches on Fri, 2 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 385.71 / piece)

€ 385.71

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Crimp type/profile: Hexagon crimp (hexagon)

Product type: Crimper

Manufacturer part #: 9006230000

Range of uses: Non-insulated connectors

Crimp area: 10 up to 25 mm²

Crimp area AWG: 4 up to 8 awg

Crimp area (min.): 10 mm²

Crimp area (max.): 25 mm²

Crimp area AWG (min.): 8 awg

Crimp area AWG (max.): 4 awg

Length: 250 mm

Width: 250 mm

Height: 214 mm

Weight: 645.78 g

: 250 m

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 259037 Weidmüller CTN 25 D5 9006230000 Crimper Non-insulated connectors 10 up to 25 mm²

User & Safety Instructions

User & Safety Instructions 259037 Weidmüller CTN 25 D5 9006230000 Crimper Non-insulated connectors 10 up to 25 mm²

Description

Crimping tool for contacts. 10 mm², 25 mm², hexagonal crimp (hexagon). Crimp tools for non-insulated connectors, rolled cable lugs, spade connectors, pin connectors, Parallel and series connectors. Interlock guarantees proper contact. Unlock mechanism (in case of incorrect operation).
