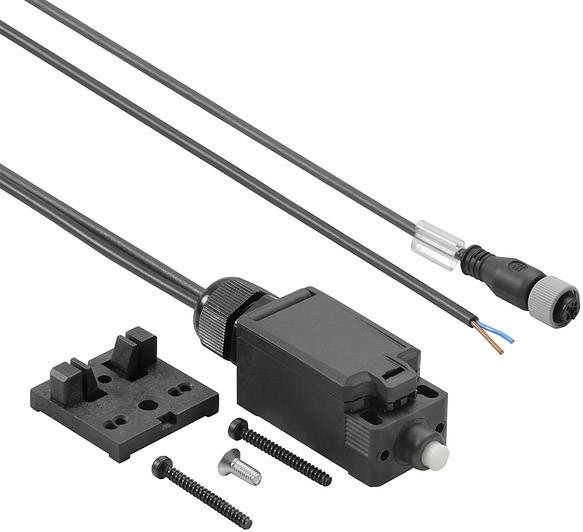

Weidmüller Door switch WIL-TS-M12 24 V DC (L x W x H) 40 x 102.5 x 36.3 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Door switch
Operating voltage
24 V DC
IP rating
IP67
Energy efficiency rating
n.rel.
Type
WIL-TS-M12
Datasheet (PDF)
Technical specifications
- Mounting type: Screw mounting
- Hole spacing 21.5 mm
- Cable material: PURE
- Product type
Door switch
- Type
WIL-TS-M12
- Features
incl. switch
- Operating voltage
24 V DC
- Operating current
1.5 A
- Lead length
0.5 m
- Connection
M12 socket
- Material
PUR
IP67
- Protection class
IP67
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Length
40 mm
- Width
102.5 mm
- Height
36.3 mm
- Dim
(L x W x H) 40 x 102.5 x 36.3 mm
- RoHS-compliant
Yes
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1947505 Weidmüller Door switch WIL-TS-M12 24 V DC (L x W x H) 40 x 102.5 x 36.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1947505 Weidmüller Door switch WIL-TS-M12 24 V DC (L x W x H) 40 x 102.5 x 36.3 mm 1 pc(s)
