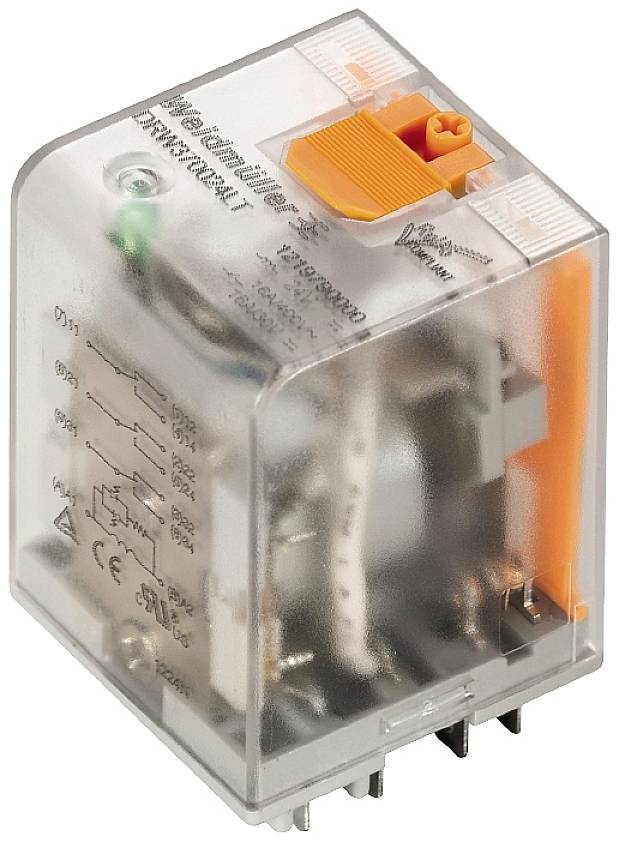

Weidmüller DRH275024LT Plug-in relay 24 V DC 16 A 1 breaker, 1 maker 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Contact type
1 breaker
1 maker
Switching voltage (max.)
250 V AC
300 V DC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Plug-in relay
- Type
DRH275024LT
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
18 V DC
- Max. pick-up voltage
26.4 V DC
- Resistance (coil)
400 Ω
- Contact type
1 breaker
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
300 V DC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
660 W
- Creepage distance (coil/clips)
6.3 mm
- Connection
CEE 7/16 CEE plug
- Fall time
20 ms
- Durability
10 x 106 circuits
IP20
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Weight
86.2 g
- Factory colour
Transparent
- Width
36 mm
- Height
36 mm
- Depth
48 mm
- Dim
(W x H x D) 36 x 36 x 48 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
