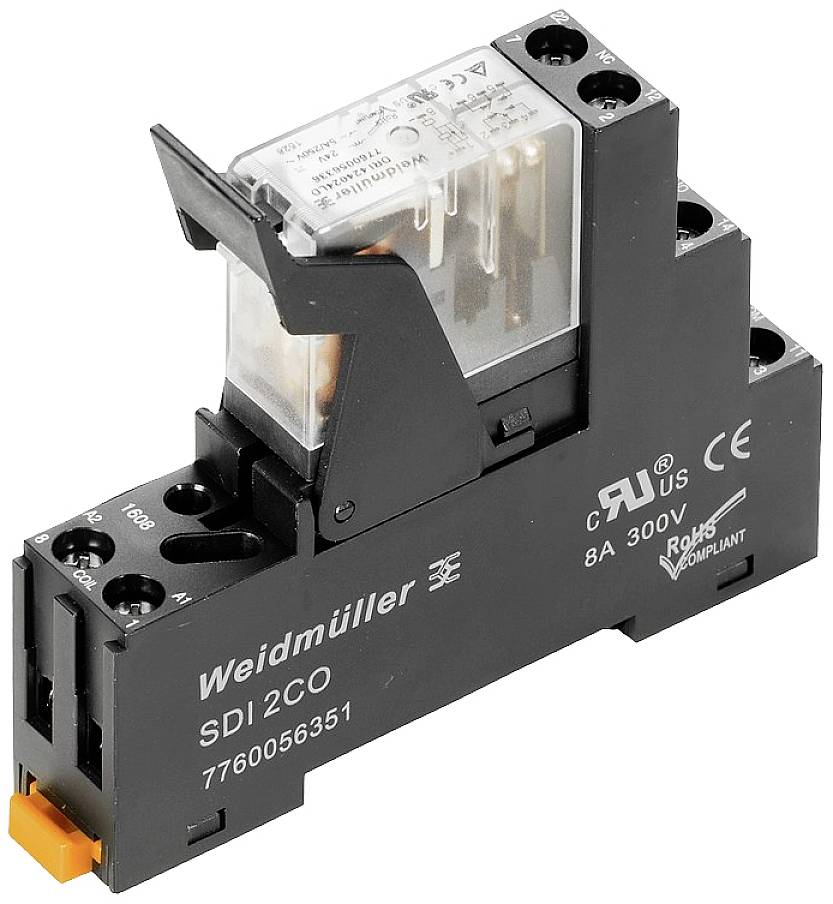

Weidmüller DRIKIT 115VAC 2CO LD Crossbar switch 115 V AC 5 A 2 change-overs 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
115 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
5 A
Datasheet (PDF)
Technical specifications
- Humidity: 35...85 % rel. humidity, no condensation
- Storage temperature: -40 °C…85 °C
- Nominal current AC 9.3 mA
- Rated power 1.1 VA
- Pick-up/drop-off voltage type 92 V / 34.5 V AC
- Status display: LED red
- Nominal switching voltage 250 V AC
- Switching power DC (ohmic), max. 150 W @ 24 V
- min Switching power 10 mA @ 12 V, 100 mA @ 5 V
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Rated voltage: 250 V
- Over voltage category III
- Pollution level: 2
- Insulation material group: IIIB
- Electrical strength input - output: 4 kVeff / 1 min.
- Electrical strength of adjacent contacts: 1.5 kVeff / 1 min.
- Open contact withstand voltage 1 kVeff/1 min.
- Standing surge voltage 4.8 kV (1.2/50 µs)
- Wire stripping length rated connection: 8 mm
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max.: 0.8 Nm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.25 mm²
- Clamping range, max. 4 mm²
- Conductor cross-section, single-wire, min. 0.25 mm²
- Conductor cross-section, single-wire, max. 4 mm²
- Conductor cross-section, fine strand, min. 0.25 mm²
- Conductor cross-section, fine strand, max. 4 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.25 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 4 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.25 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 4 mm²
- Blade dimension: GR. PH1
- Switching voltage DC, max. 250 V
- Switch-off delay: ≤ 10 ms
- Product type
Crossbar switch
- Type
DRIKIT 115VAC 2CO LD
- Connection
Screws
- Factory colour
Black
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
115 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Max. switching capacity
1250 VA
- Durability
10 x 106 cycles
- Creepage distance (coil/clips)
3 mm
- Resistance (coil)
6200 Ω
IP20
- Max. temperature
+55 °C
- Min. temperature
-40 °C
- Depth
67.7 mm
- Width
15.8 mm
- Height
80.2 mm
- Dim
(W x H x D) 15.8 x 80.2 x 67.7 mm
- Content
10 pc(s)
- Weight
64 g
- RoHS-compliant
Yes
- Permanent current (max.)
5 A
- Operating voltage
115 V AC
- UKCA
not relevant
