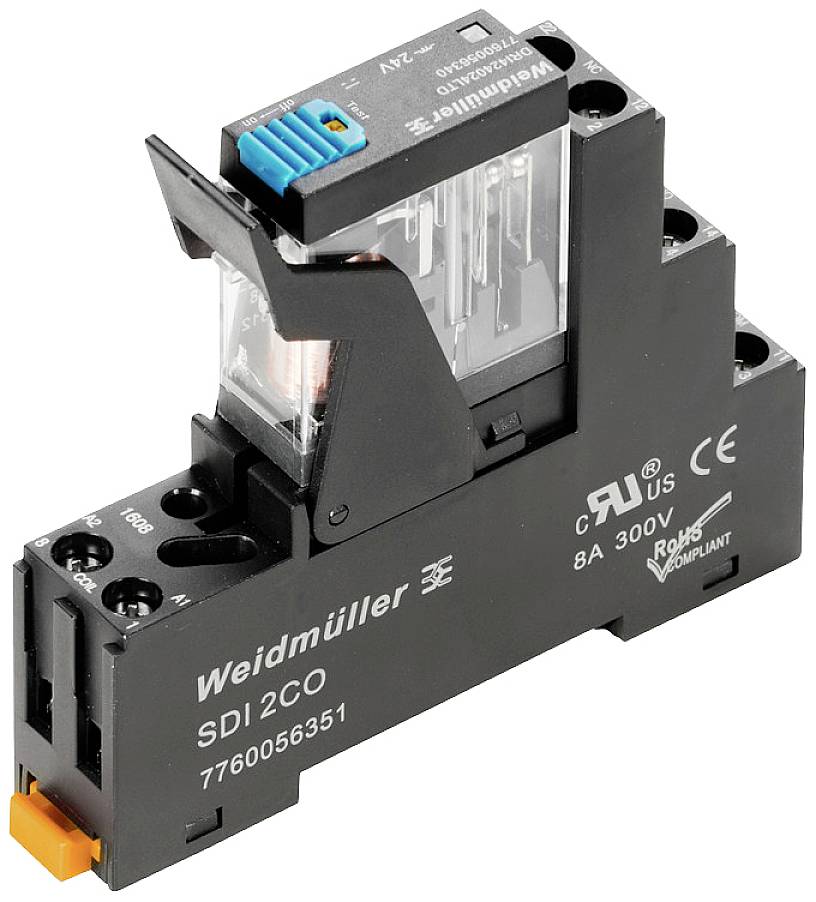

Weidmüller DRIKIT 24VDC 2CO LD/PB Relay component Nominal voltage: 24 V DC Switching current (max.): 5 A 2 change-overs
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay component
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Datasheet (PDF)
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 15 ms
- Switch-off delay: ≤ 10 ms
- min Switching power 10 mA at 12 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: Yes (can be blocked)
- Mechanical switch position indicator: Yes
- Over voltage category III
- Pollution level: 2
- Insulation material group: IIIB
- Electrical strength input - output: 4 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.25 mm²
- Clamping range, max. 4 mm²
- Conductor cross-section, single-wire, min. 0.25 mm²
- Conductor cross-section, single-wire, max. 4 mm²
- Conductor cross-section, fine strand, min. 0.25 mm²
- Conductor cross-section, fine strand, max. 4 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.25 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 4 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.25 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 4 mm²
- Blade dimension: GR. PH1
- Packaging type
Piece
- Product type
Relay component
- Type
DRIKIT 24VDC 2CO LD/PB
- Connection
Screw terminal
- Factory colour
Black
- Min. pick-up voltage
21.6 V DC
- Max. pick-up voltage
18 V DC
- Response time
15 ms
- Fall time
10 ms
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
5 A
- Max. switching capacity
1250 VA
150 W
- Durability
10 x 10 6 circuits
- Creepage distance (coil/clips)
3 mm
- Resistance (coil)
1100 Ω
- Features
+ test button
IP20
- Max. temperature
55 °C
- Min. temperature
-40 °C
- Length
68 mm
- Width
15.8 mm
- Height
80.2 mm
- Dim
(L x W x H) 68 x 15.8 x 80.2 mm
- Content
10 pc(s)
- Weight
64 g
- RoHS-compliant
Yes
- UKCA
yes
