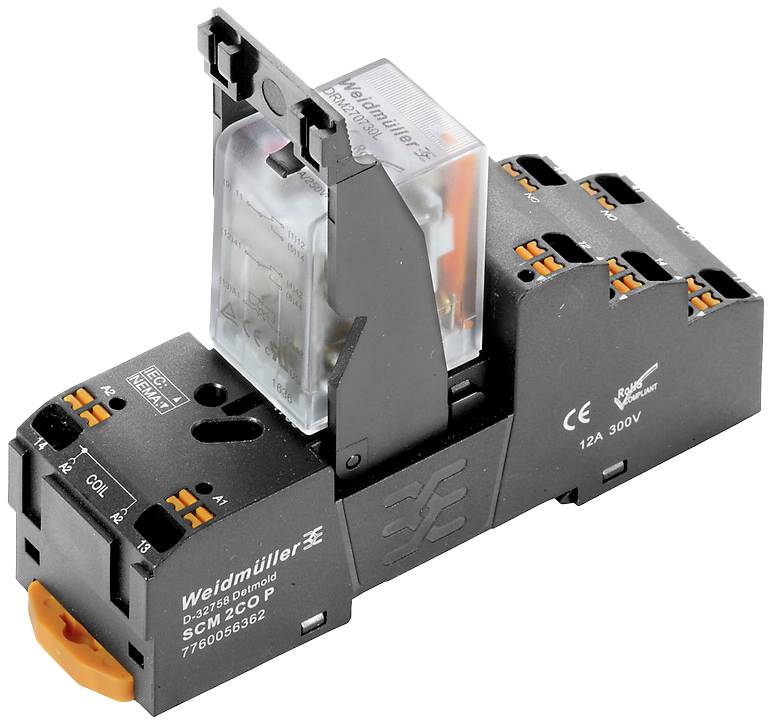

Weidmüller DRMKITP 24VAC 2CO LD Relay component Nominal voltage: 24 V AC Switching current (max.): 10 A 2 change-overs P
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay component
Contact type
2 change-overs
Nominal voltage
24 V AC
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Technical specifications
- Status display: LED red
- Switch-on delay< 20 ms
- Switch-off delay< 20 ms
- min Switching power 10 mA at 12 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: Yes
- Over voltage category III
- Pollution level: 2
- Insulation material group: C
- Voltage strength input - output: 1.8 kVeff / 1 min.
- Insulation stripping length rated connection: 10 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.14 mm²
- Clamping range, max. 1.5 mm²
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 16
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 0.14 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.14 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.14 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.4 x 2.5 mm
- Packaging type
Piece
- Product type
Relay component
- Type
DRMKITP 24VAC 2CO LD
- Connection
Push-in connector
- Factory colour
Black
- Min. pick-up voltage
19.2 V AC
- Max. pick-up voltage
19.2 V AC
- Response time
20 ms
- Fall time
20 ms
- Contact type
2 change-overs
- Contact material
AgNi + 0.15 μm Au
- Nominal voltage
24 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
240 W
- Durability
20 x 10 6 circuits
- Creepage distance (coil/clips)
5.5 mm
- Resistance (coil)
160 Ω
- Features
+ LED
IP20
- Max. temperature
55 °C
- Min. temperature
-40 °C
- Length
82.3 mm
- Width
30.6 mm
- Height
101.8 mm
- Dim
(L x W x H) 82.3 x 30.6 x 101.8 mm
- Content
10 pc(s)
- Weight
97.00 g
- RoHS-compliant
Yes
- UKCA
not relevant
