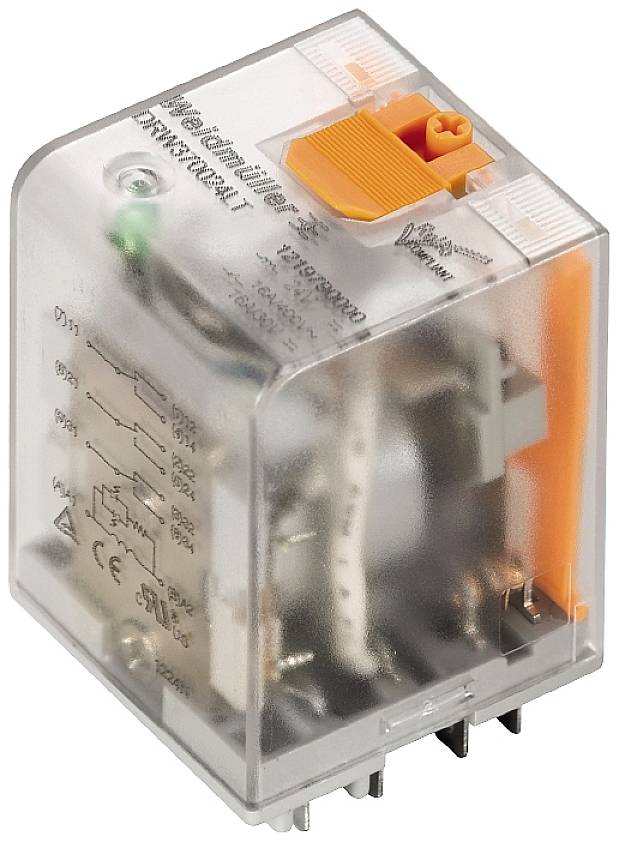

Image similar
Weidmüller DRW373730LT Plug-in relay 230 V AC 16 A 3 change-overs 10 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Control mode
monostable, 1 coil
Contact type
3 change-overs
Switching voltage (max.)
400 V AC
250 V DC
Technical specifications
- Product type
Plug-in relay
- Type
DRW373730LT
- Coil nominal voltage
230 V AC
- Max. pick-up voltage
184 V AC
- Control mode
monostable, 1 coil
- Resistance (coil)
8000 Ω
- Coil voltage rating
2.5 VA
- Contact type
3 change-overs
- Contact material
AgSnO
- Switching voltage (max.)
400 V AC
250 V DC
- Switching current (max.)
16 A
- Max. switching capacity
6400 VA
384 W
- Connection
CEE 7/16 CEE plug
- Fall time
20 ms
- Durability
20 x 106 switches
- Features
+ LED display
IP20
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
36 mm
- Height
36 mm
- Depth
48 mm
- Dim
(W x H x D) 36 x 36 x 48 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2541891 Weidmüller DRW373730LT Plug-in relay 230 V AC 16 A 3 change-overs 10 pc(s)
