Weidmüller EBR-MODULE RS232 Configurator
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

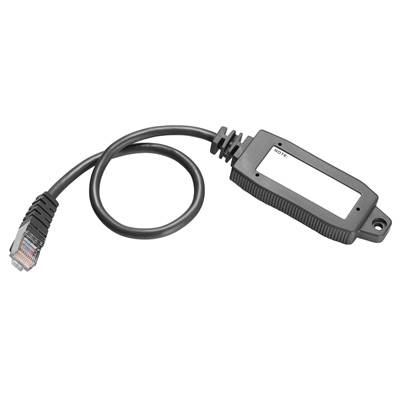

Configuration module
- Ewc MODULE RS232
Technical specifications
- Housing base material: PVC die-cast
- Connection type: RJ45 port, RS232
- Fastening method: M4 screw (<4 mm)
- Cable length 0.35m.
- Product type
Configurator
- Type
EBR-MODULE RS232
- Dim
(W x H x D) 32.5 x 12 x 97 mm
- Weight
50 g
- Operating temperature
0 up to +60 °C
- Max. operating temperature
+60 °C
- Min. operating temperature
0 °C
- Width
32.5 mm
- Height
12 mm
- Depth
97 mm
IP40
- Max. temperature
+60 °C
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201921 Weidmüller EBR-MODULE RS232 Configurator
User & Safety Instructions
User & Safety Instructions 201921 Weidmüller EBR-MODULE RS232 Configurator
Description
Configuration module. IP40, 0°C...+60°C. External module for saving and restoring the configuration. Reduced system downtime through a simple reconfiguration in the event of the exchange of devices. Plug & Play system backup and recovery. Compact and robust design. Can be used with all Weidmüller managed switches of the value and premium line as well as the weidmüller WLAN Access Point.
