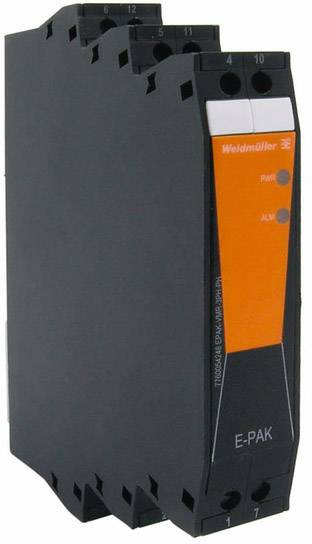

Image similar
Image similar
Weidmüller EPAK-CI-4CO 7760054308 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (current) (max.)
20 mA
Type
EPAK-CI-4CO
Dim
(L x W x H) 100 x 89 x 100 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Type
EPAK-CI-4CO
- Product type
ATA
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 100 x 89 x 100 mm
- Connection
Screws
- Output (current)
0 mA-20 mA, 4 mA-20 mA
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Input signal (current)
0 mA-20 mA, 4 mA-20 mA
- Input resistance
100 Ω
- Content
1 pc(s)
- Width
89 mm
- Height
100 mm
- Length
100 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
35 V DC
- Operating voltage U(B)
24 V
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
