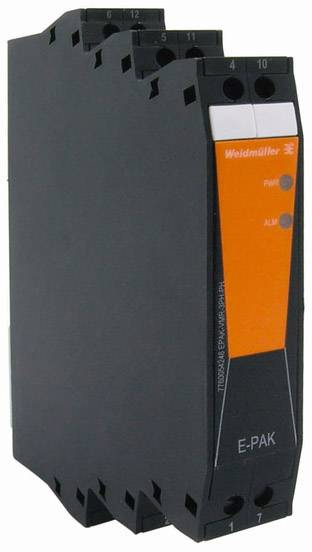

Weidmüller EPAK-CM-CO-H 7760054300 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (current) (max.)
5000 mA
Type
EPAK-CM-CO-H
Dim
(L x W) 100 mm x 17.5 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Depth: 89 mm
- Net weight 80 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -40 °C to +85 °C.
- Galvanic isolation: Between input / output / supply
- Accuracy: ± 0.5 % of the measuring range
- Input frequency 40 Hz - 60 Hz
- Power consumption < : 100 mA at 24 V/DC
- Jump response time < : 300 ms (RMS)
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 30
- Conductor cross-section AWG, max. AWG 14
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
EPAK-CM-CO-H
- Product type
ATA
- Input signal (current) (max.)
5000 mA
- Dim
(L x W) 100 mm x 17.5 mm
- Connection
Screws
- Output (current)
4 mA-20 mA
- Operating voltage
300 V AC (max)
- Max. operating voltage
300 V AC
- Load
500 Ω
- Input signal (current)
0.1-1A AC/DC, 0.5-5A AC/DC
- Content
1 pc(s)
- Width
17.5 mm
- Length
100 mm
- Max. ambient temperature
60 °C
- Supply voltage (num.)
30 V DC
- Operating voltage U(B)
24 V/DC
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
