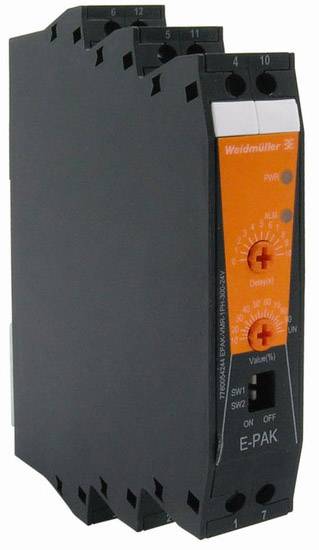

Weidmüller EPAK-CMR-1PH-5-230V 7760054247 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (current) (max.)
5000 mA
Type
EPAK-CMR-1PH-5-230V
Dim
(L x W) 100 mm x 17.5 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Depth: 89 mm
- Net weight 80 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -40 °C to +85 °C.
- Continuous current 3 A
- Galvanic isolation: Between input / output / supply / relay
- Accuracy: 5 %∗IN
- Input frequency 40 Hz - 60 Hz
- Output type: Relay, 1 changeover contact
- Switching voltage: 250 V/AC
- Power consumption < : 9 mA at 230 V/AC
- Jump response time < 220 ms (10% - 90%)
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 30
- Conductor cross-section AWG, max. AWG 14
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
EPAK-CMR-1PH-5-230V
- Product type
ATA
- Input signal (current) (max.)
5000 mA
- Dim
(L x W) 100 mm x 17.5 mm
- Connection
Screws
- Operating voltage
300 V AC (max)
- Max. operating voltage
300 V AC
- Input signal (current)
0.1-1A AC/DC, 0.5-5A AC/DC
- Content
1 pc(s)
- Configuration
DIP switch
Potentiometer
- Width
17.5 mm
- Length
100 mm
- Supply voltage (num.)
264 V AC
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
Documents & Downloads
Datasheet
Datasheet 1889267 Weidmüller EPAK-CMR-1PH-5-230V 7760054247 ATA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1889267 Weidmüller EPAK-CMR-1PH-5-230V 7760054247 ATA 1 pc(s)
Description
The analogue converter of the EPAK-series are characterised by their compact form. On the basis of its wide function range is suitable for analogue converter family
For applications in which no international approvals are necessary.
Properties:
Safe cutting, convert and monitor your analogue signals configuration of the input and output parameters directly on the device via dip switches
No international approvals
Robust against interference
This text is machine translated.
For applications in which no international approvals are necessary.
Properties:
Safe cutting, convert and monitor your analogue signals configuration of the input and output parameters directly on the device via dip switches
No international approvals
Robust against interference
