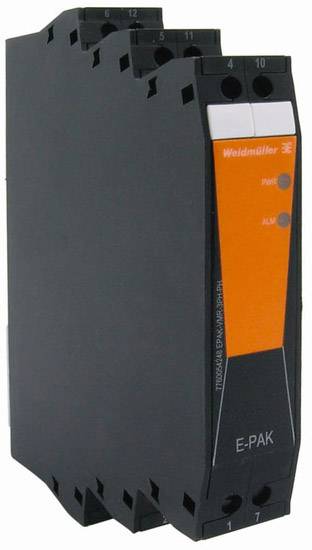

Weidmüller EPAK-TMR-PTC 7760054304 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Type
EPAK-TMR-PTC
Dim
(L x W) 100 mm x 17.5 mm
Connection
Screws
Operating voltage
300 V AC (max)
Datasheet (PDF)
Technical specifications
- Depth: 89 mm
- Net weight 80 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -40 °C to +85 °C.
- Sensor: PTC sensor, max. resistance sum of the sensors in series (cold state): <1.5 kΩ
- Galvanic isolation: Between input/output
- Output type: Relay, 1 changeover contact
- Switching voltage: 250 V/AC
- Power consumption < 60 mA at 24 V/DC
- Jump response time < : 200 ms (10% - 90%)
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 30
- Conductor cross-section AWG, max. AWG 14
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
EPAK-TMR-PTC
- Product type
ATA
- Dim
(L x W) 100 mm x 17.5 mm
- Connection
Screws
- Operating voltage
300 V AC (max)
- Max. operating voltage
300 V AC
- Content
1 pc(s)
- Configuration
DIP switch
- Width
17.5 mm
- Length
100 mm
- Max. ambient temperature
+60 °C
- Supply voltage (num.)
30 V DC
- Operating voltage U(B)
24 V/DC
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1889437 Weidmüller EPAK-TMR-PTC 7760054304 ATA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1889437 Weidmüller EPAK-TMR-PTC 7760054304 ATA 1 pc(s)
Description
The analogue converter of the EPAK-series are characterised by their compact form. On the basis of its wide function range is suitable for analogue converter family
For applications in which no international approvals are necessary.
Properties:
• Safe cutting, convert and monitor your analogue signals
• Configuration of the input and output parameters directly on the device via dip switches
• No international approvals
• Robust against interference
This text is machine translated.
For applications in which no international approvals are necessary.
Properties:
• Safe cutting, convert and monitor your analogue signals
• Configuration of the input and output parameters directly on the device via dip switches
• No international approvals
• Robust against interference
This text is machine translated.
