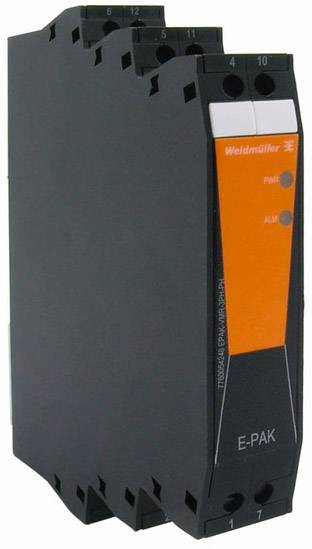

Weidmüller EPAK-VI-CO 7760054178 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (voltage) (max.)
10 V
Type
EPAK-VI-CO
Dim
(L x W x H) 100 x 17.5 x 100 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Depth: 89 mm
- Net weight 80 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -40 °C to +85 °C.
- Number of inputs: 1
- Number of outputs: 1
- Galvanic isolation: Between input / output / supply
- Accuracy ≤ ±0.15 % from FSR
- Power consumption < 60 mA at 24 V/DC
- Jump response time < : 100 ms
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 30
- Conductor cross-section AWG, max. AWG 14
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
EPAK-VI-CO
- Product type
ATA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 100 x 17.5 x 100 mm
- Connection
Screws
- Output (current)
4 mA-20 mA
- Operating voltage
300 V AC (max)
- Max. operating voltage
300 V AC
- Load
500 Ω
- Input signal (voltage)
10 V
- Input resistance
100 kΩ
- Content
1 pc(s)
- Width
17.5 mm
- Height
100 mm
- Length
100 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
30 V DC
- Operating voltage U(B)
24 V
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
