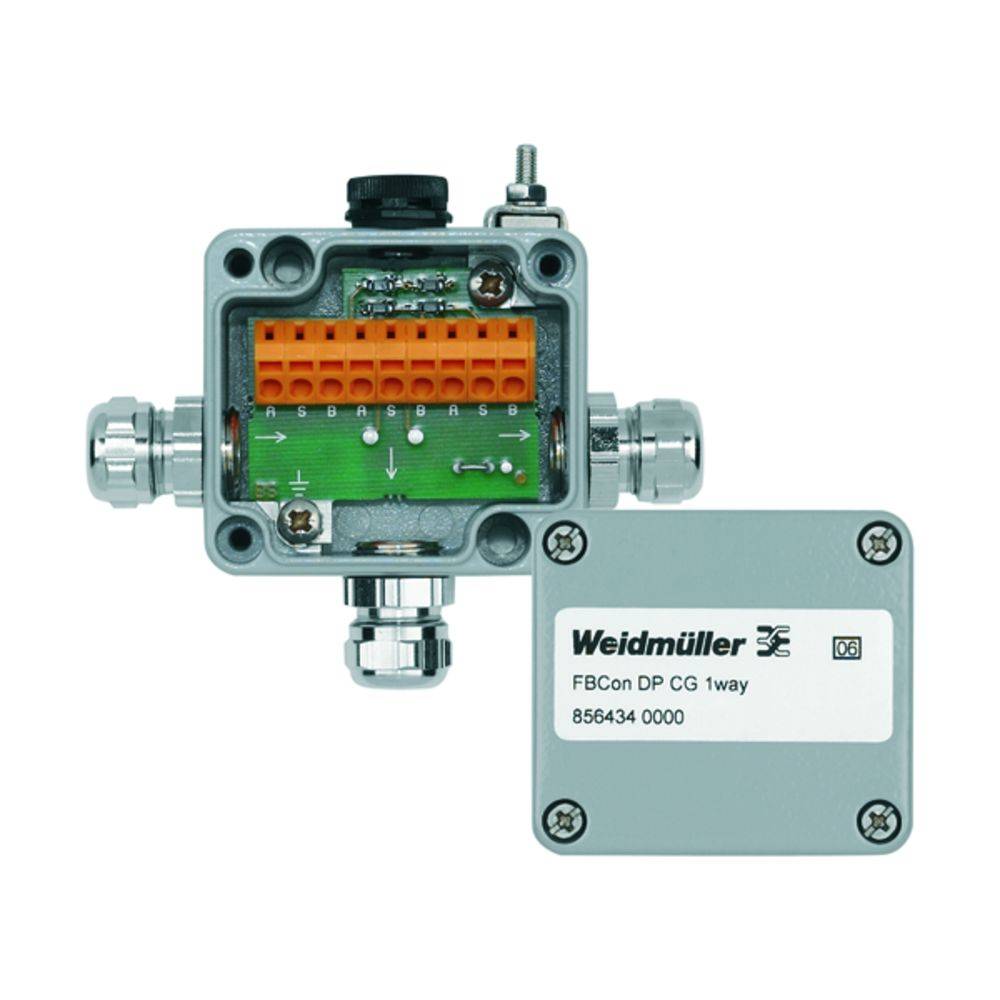

Weidmüller FBCON DP CG 1WAY 8564340000 Sensor & actuator box (passive) Profibus DP standard splitter with bus terminatio

Standard Distributor. IP66. The FBCon fieldbus distributor DP are used for the coupling of 1 - 8 actuators, sensors or remote I/O's to a PROFIBUS network. The feeders (T-pieces) connect the individual buskomponenten with the bus line. The respective branch line length depends on the transmission speed and should be as short as possible. The sum of all spur lines must not exceed 6.6 m with transfer rates of up to 1.5 Mbaud. The trunk is EMC cable glands in an aluminum/stainless steel housing verse Chau, and by means of trains spring terminals. The Sitchleitung for device is using a B-coded M12 socket or a EMC cable gland is connected. At the beginning and end of the PROFIBUS-DP network terminating resistors must be switched on. The Terminator Modules fulfill this task. The 24 VDC power supply via the right cable gland. In order to counteract climate change cycles are the housing with a pressure compensation element. In principle, with the installation of the guidelines of the PROFIBUS user organization are to be observed. The distributors have the following properties: Spring-cage connection. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Pressure compensation element. {Protection class} IP66 Stainless steel designs, PROFIBUS-DP compatible.

This text is machine translated.
