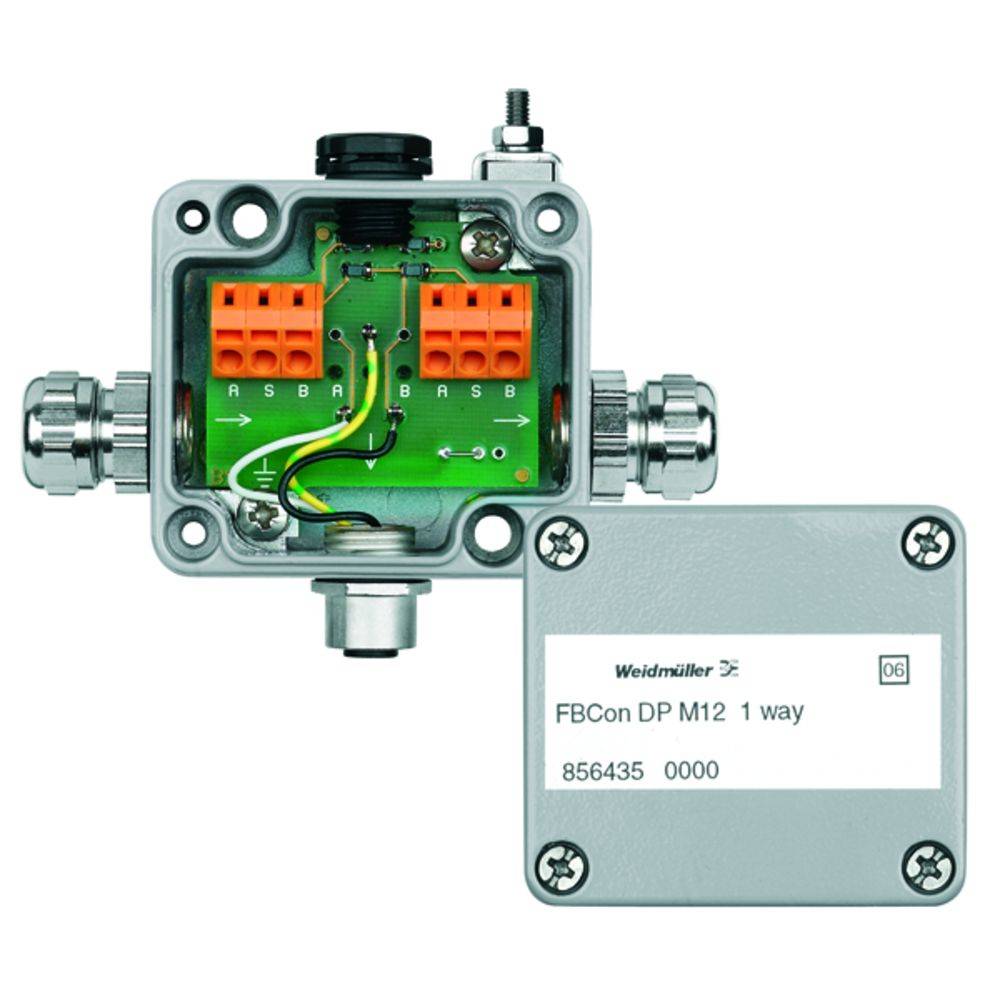

Weidmüller FBCON DP M12 1WAY 8564350000 Sensor & actuator box (passive) Profibus DP standard splitter w/o bus terminatio
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
1
No. of splitters
1-way
Configuration
Single
Datasheet (PDF)
Highlights & Details
Standard splitter w/o bus termination
- FBCon DP M12 1-way
Technical specifications
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
1
- Configuration
Single
- Type
FBCON DP M12 1WAY
- Trunk line
No
- No. of splitters
1-way
- Status indicator
No LED
- Connection
Spring-loaded terminal
- Width
58 mm
- Length
64 mm
IP66
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.5 mm²
- Connector type (distribution boxes)
Spring-loaded terminal
- Case material
Stainless steel
- Weight
249 g
- Manufacturer part #
8564350000
- Factory colour
Grey
- Content
1 pc(s)
- Height
36 mm
64
34 mm
FALSE
DC
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
None
None
FALSE
IP66
None
FALSE
FALSE
FALSE
TRUE
FALSE
24-24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258176 Weidmüller FBCON DP M12 1WAY 8564350000 Sensor & actuator box (passive) Profibus DP standard splitter w/o bus terminatio
User & Safety Instructions
User & Safety Instructions 258176 Weidmüller FBCON DP M12 1WAY 8564350000 Sensor & actuator box (passive) Profibus DP standard splitter w/o bus terminatio
Description
Standard splitter w/o bus termination. Standard splitter w/o bus termination, 1-way distributor, IP66. The FBCon fieldbus distributor DP are used for the coupling of 1 - 8 actuators, sensors or remote I/O's to a PROFIBUS network. The feeders (T-pieces) connect the individual buskomponenten with the bus line. The respective branch line length depends on the transmission speed and should be as short as possible. The sum of all spur lines must not exceed 6.6 m with transfer rates of up to 1.5 Mbaud. The trunk is EMC cable glands in an aluminum/stainless steel housing verse Chau, and by means of trains spring terminals. The Sitchleitung for device is using a B-coded M12 socket or a EMC cable gland is connected. At the beginning and end of the PROFIBUS-DP network terminating resistors must be switched on. The Terminator Modules fulfill this task. The 24 VDC power supply via the right cable gland. In order to counteract climate change cycles are the housing with a pressure compensation element. In principle, with the installation of the guidelines of the PROFIBUS user organization are to be observed. The distributors have the following properties: Spring-cage connection. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Pressure compensation element. {Protection class} IP66 Stainless steel designs, PROFIBUS-DP compatible.
This text is machine translated.
