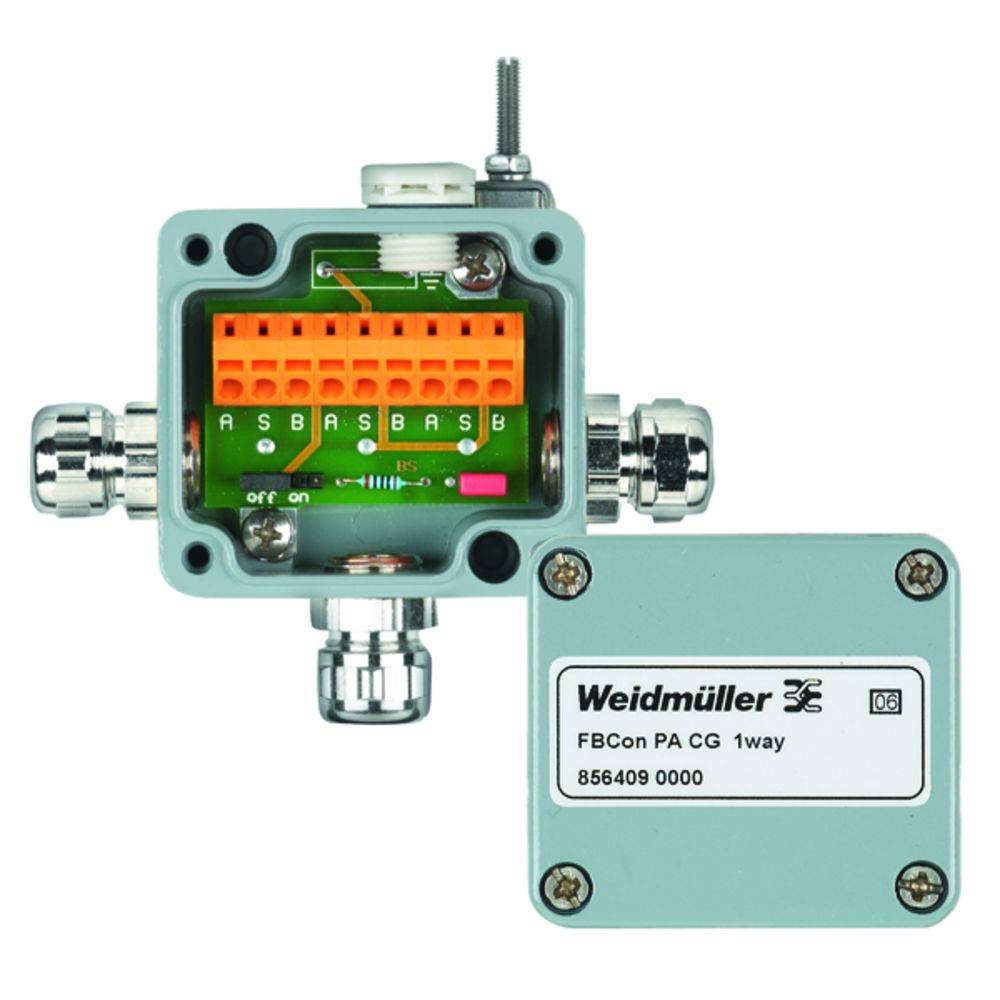

Weidmüller FBCON PA CG 1WAY 8564090000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of splitters
1-way
Configuration
Single
Type
FBCON PA CG 1WAY
Trunk line
No
Datasheet (PDF)
Highlights & Details
Standard splitter
- FBCon PA CG1 way
Technical specifications
- Product type
Sensor & actuator box (passive)
- Configuration
Single
- Type
FBCON PA CG 1WAY
- Trunk line
No
- No. of splitters
1-way
- Status indicator
No LED
- Connection
Spring-loaded terminal
- Width
58 mm
- Length
64 mm
IP66
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Connector type (distribution boxes)
Spring-loaded terminal
- Case material
Stainless steel
- Weight
262 g
- Manufacturer part #
8564090000
- Factory colour
Grey
- Content
1 pc(s)
- Height
37 mm
58
37 mm
FALSE
DC
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
None
None
FALSE
IP66
None
FALSE
FALSE
FALSE
TRUE
FALSE
24-24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258158 Weidmüller FBCON PA CG 1WAY 8564090000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258158 Weidmüller FBCON PA CG 1WAY 8564090000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s)
Description
Standard Distributor. 1-way distributor, IP66. The FBCon fieldbus distributor are in industry and in the EEx(ia) version available. They are used for the coupling of 1 - 8 field devices or sensors. The connection is made via spur lines. The connection of the stub line is optionally available as M12 plug connection or directly with EMC cable gland. The communication, and the device is powered via a common 2-wire line. The distributors offer depending on the version the following properties: Spring-cage connection. With surge protection for the main line. With current limiter (limiter) for each stub. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Industrial design. Bus Termination integrated (non-Ex). EX-Version ATEX. Pressure compensation element, type of protection IP65, IP66, IP67. Stainless steel design, PROFIBUS-PA compatible.
