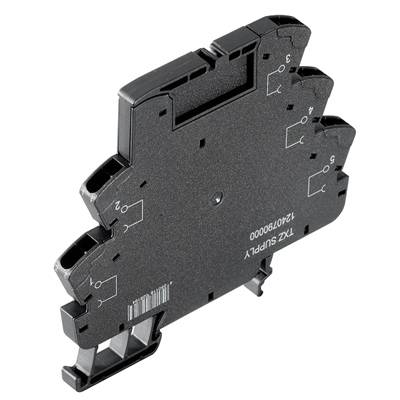

Weidmüller Feeder module 10 pc(s) TXZ SUPPLY 300 V (max) IP20
EAN:
Part number:
Item no:
Product type
Feeder module
Connection
Pull spring
Max. operating voltage
300 V
Type
TXZ SUPPLY
Operating voltage
300 V (max)
Datasheet (PDF)
Highlights & Details
Infeed Module
- Industrial packaging, pack of 10
Technical specifications
- Storage temperature: -40 °C to +85 °C.
- Continuous current 10 A
- Contact design: 5
- Mounting rail TS 35
- Colour, black
- Surge voltage 6 kV (1.2/50 µs)
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range 0.14 mm² - 2.5 mm²
- CONDUCTOR CROSS-SECTION AWG: AWG 26 - AWG 14
- Conductor cross-section, fine-wired: 0.14 mm² - 2.5 mm² Twin ferrule: 0.5 mm² - 1 mm²
- Blade dimensions 0.6 mm x 3.5 mm
- Product type
Feeder module
- Type
TXZ SUPPLY
- Connection
Pull spring
- Max. operating voltage
300 V
- Operating voltage
300 V (max)
IP20
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
6.4 mm
- Height
90.5 mm
- Length
81.5 mm
- Dim
(L x W x H) 81.5 x 6.4 x 90.5 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 320321 Weidmüller Feeder module 10 pc(s) TXZ SUPPLY 300 V (max) IP20
User & Safety Instructions
User & Safety Instructions 320321 Weidmüller Feeder module 10 pc(s) TXZ SUPPLY 300 V (max) IP20
Description
Infeed module. Terms Series, number of contacts: 5, AgNi, continuous current 10 A, spring-cage connection.
