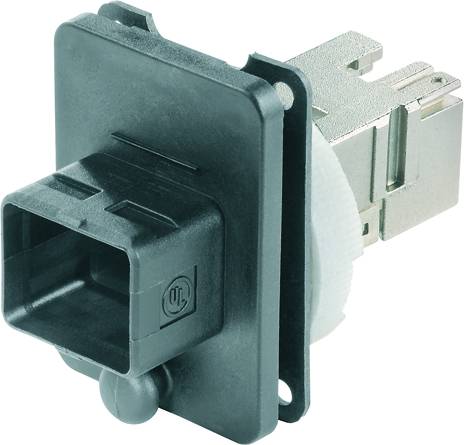

Weidmüller FO connector IE-BS-V04P-RJ45-C Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
Panel-fit
Enclosure material
PA
Connection
RJ45
Functions (FO)
Connector
Datasheet (PDF)
Highlights & Details
Flange RJ45
Our service for you
Technical specifications
- Sealing material: NBR
- contact surface: Gold over nickel
- shielding: 360° closed all around
- Product type
FO connector
- Mounting type
Panel-fit
- Manufacturer
Weidmüller
- Type
Sleeve
- Enclosure material
PA
- Connection
RJ45
- Functions (FO)
Connector
- Protection class
IP67
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+70 °C
- Width
150 mm
- Height
260 mm
- Length
75 mm
- RoHS-compliant
Yes
- Manufacturer part #
1963490000
- Content
10 pc(s)
- Connector type
Connector, mount
Push-pull latch
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 389382 Weidmüller FO connector IE-BS-V04P-RJ45-C Connector
User & Safety Instructions
User & Safety Instructions 389382 Weidmüller FO connector IE-BS-V04P-RJ45-C Connector
Description
Flange RJ45. IP67, Version 4, clutch, Cat 6A/Class EA (ISO/IEC 11801, 2010). Push-pull connector set according to IEC 61076-3-106 Var.4 (IEC 24702) in plastic including RJ45.
