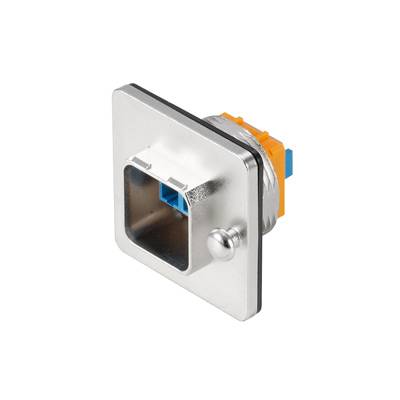

Weidmüller FO connector IE-BSC-V14M-LCD-SM-C Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
Panel-fit
Enclosure material
Zinc (die-cast)
Connection
LC
Functions (FO)
Connector
Datasheet (PDF)
Highlights & Details
Flange FO
Our service for you
Technical specifications
- Fiber type: Singlemode
- Return loss: ≥ 40 dB
- Sealing material: NBR
- Product type
FO connector
- Mounting type
Panel-fit
- Manufacturer
Weidmüller
- Type
Sleeve
- Enclosure material
Zinc (die-cast)
- Connection
LC
- Functions (FO)
Connector
- Protection class
IP67
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+70 °C
- Width
39.6 mm
- Height
39.6 mm
- Length
33 mm
- RoHS-compliant
Yes
- Manufacturer part #
1062620000
- Content
10 pc(s)
- Connector type
Connector, mount
Push-pull latch
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283077 Weidmüller FO connector IE-BSC-V14M-LCD-SM-C Connector
User & Safety Instructions
User & Safety Instructions 283077 Weidmüller FO connector IE-BSC-V14M-LCD-SM-C Connector
Description
Flange FIBER OPTIC. IP67, Version 14 Central Gland, LC duplex coupling, single-mode. Push-pull connector set according to IEC 61076-3-117 Var. 14 (PROFINET) in metal including LC-use.
