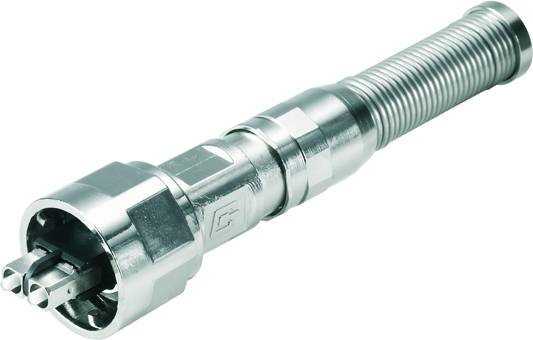

Weidmüller FO connector IE-PS-V01M-2SC-POF-BP Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
Free suspension
Enclosure material
Zinc (die-cast)
Connection
SC-RJ
Crimp
Functions (FO)
Connector
Datasheet (PDF)
Highlights & Details
Fiber optic plug
Our service for you
Technical specifications
- Fiber type: POF
- Housing material Application: PA, zinc die casting
- Shell diameter, max.: 10 mm
- Return loss: 40 dB Single mode; 30 dB Multimode
- Product type
FO connector
- Mounting type
Free suspension
- Manufacturer
Weidmüller
- Type
Plug
- Enclosure material
Zinc (die-cast)
- Connection
SC-RJ
Crimp
- Functions (FO)
Connector
- Protection class
IP67
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+70 °C
- Compatible with
Polymer
- Width
30 mm
- Height
30 mm
- Length
137 mm
- RoHS-compliant
Yes
- Manufacturer part #
1963290000
- Content
10 pc(s)
- Connector type
Plug, straight
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 389362 Weidmüller FO connector IE-PS-V01M-2SC-POF-BP Connector
User & Safety Instructions
User & Safety Instructions 389362 Weidmüller FO connector IE-PS-V01M-2SC-POF-BP Connector
Description
Fiber optic plug. Variant 1, SC DUPLEX POF, kink protection, IP67. Bayonet connector sets according to IEC 61076-3-106 Var.1 (EtherNet/IP) RJ45 use in metal including SC use.
