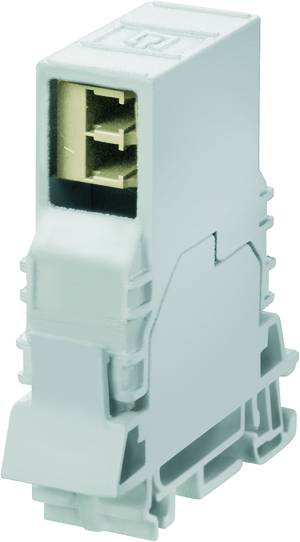

Weidmüller FO connector IE-TO-LCD-MM Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
DIN rail
Enclosure material
PA
Connection
LC
Functions (FO)
Connector
Datasheet (PDF)
Highlights & Details
Mounting rails outlet, FIBER OPTIC CABLE
Our service for you
Technical specifications
- Fiber type: Multimode
- mounting type: TS 35
- Product type
FO connector
- Mounting type
DIN rail
- Manufacturer
Weidmüller
- Type
DIN rail mount outlet
- Enclosure material
PA
- Connection
LC
- Functions (FO)
Connector
- Protection class
IP20
- Factory colour
Light grey
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+70 °C
- Width
59.55 mm
- Height
17.5 mm
- Length
67.05 mm
- RoHS-compliant
Yes
- Manufacturer part #
8947010000
- Content
10 pc(s)
- Connector type
Rail-mount outlet
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391938 Weidmüller FO connector IE-TO-LCD-MM Connector
User & Safety Instructions
User & Safety Instructions 391938 Weidmüller FO connector IE-TO-LCD-MM Connector
Description
Mounting rails outlet, FIBER OPTIC CABLE. LC duplex, multi-mode, IP20. Mounting rail outlet, design coupling LC Duplex according to IEC 61754-20.
