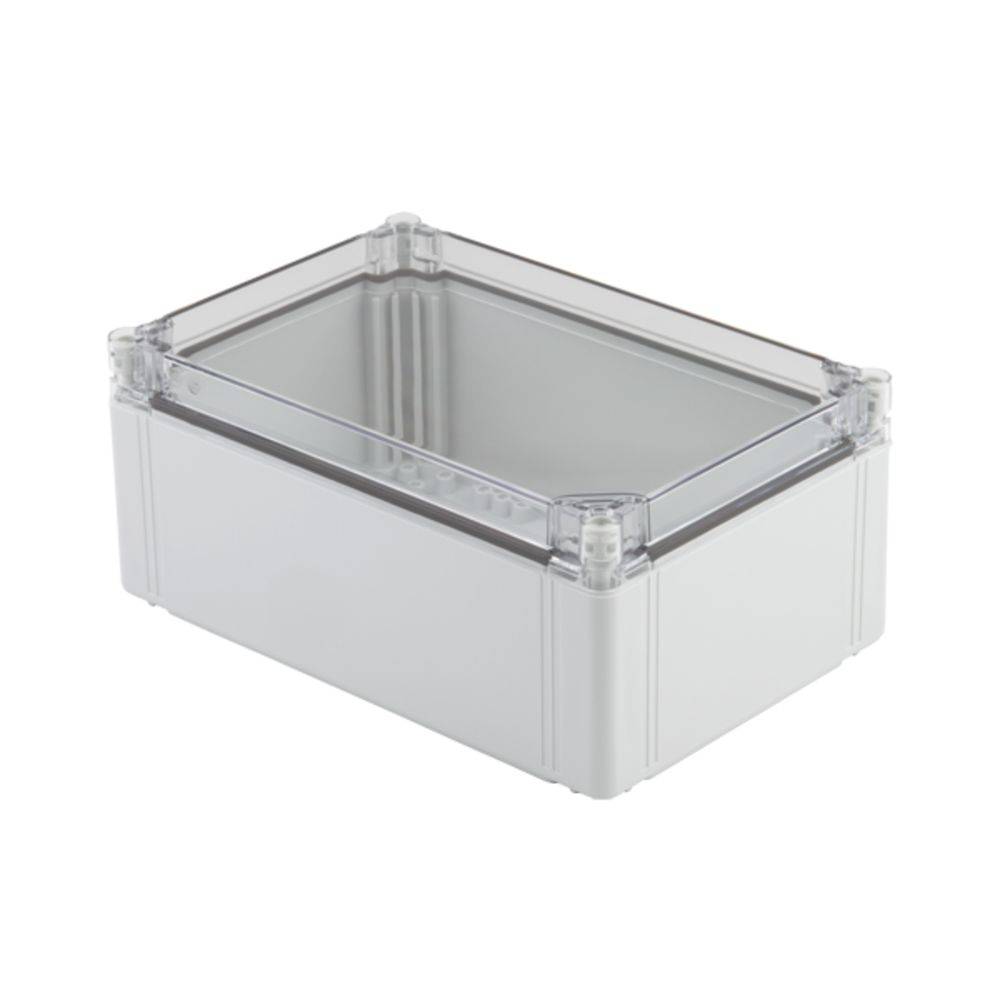

Weidmüller FPC 20/30/13 TRSP 9535700000 Universal enclosure 300 x 200 x 132 Polycarbonate (PC) Light grey, Transparent 1
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Polycarbonate (PC)
IP rating
IP66
IP67
Width
300 mm
Height
200 mm
Datasheet (PDF)
Highlights & Details
Cases & Enclosures
- Trsp FPC 20/30/13
- This text is machine translated.
Technical specifications
- Max. operating temperature: 130 °C
- Operating temperature, min. -50 °C.
- Cover attachment: 4 polyamide cross-head screws
- Sealing material: Polyurethane
- Torque of cover screws 0.8 Nm
- Mounting: By self-tapping screws
- Case fixing: Holes 7.5 mm
- Product type
Universal enclosure
- Features
Cover (clear)
- Material
Polycarbonate (PC)
IP66
IP67
- Factory colour
Light grey
Transparent
- Width
300 mm
- Height
200 mm
- Content
1 pc(s)
- Dim
(W x H x D) 300 x 200 x 132 mm
- RoHS-compliant
Yes
- Weight
1349 g
- Depth
132 mm
- Type
FPC 20/30/13 TRSP
- UKCA
yes
