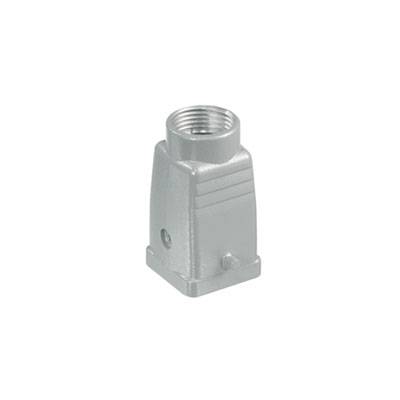

Weidmüller HDC 04A TOLU 1M20G 1788820000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M20
Case material
Aluminium, die cast
Type
HDC 04A TOLU 1M20G
Series
RockStar® HDC 04A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC04A Ulu Ko * 1M 20 G
Technical specifications
- Wide housing C: 26.8 mm
- Height Housing B: 50 mm
- Length Housing: 26.8 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Surface: Powder coating
- Number of cable input above: 1
- Number of cable input side: 0
- Design: Standard
- size: 1
- Bracket design: Transverse bow
- suitable for ModulPlug®: No
- Size of cable inputs
- : M 20 Upper part/cover: Upper part
- Type
HDC 04A TOLU 1M20G
- Product type
Plug enclosure
- Series
RockStar® HDC 04A
- Manufacturer part #
1788820000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
M20
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
26 g
- Content
1 pc(s)
- Width
36.5 mm
- Height
50 mm
- Length
26.8 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
36.5
TRUE
50 mm
26.8 mm
Grey
Double locking levers
0
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Plug case
IP65
Aluminium
Above
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203744 Weidmüller HDC 04A TOLU 1M20G 1788820000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203744 Weidmüller HDC 04A TOLU 1M20G 1788820000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 1, protection class IP 65, top, plug casing, cross brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
