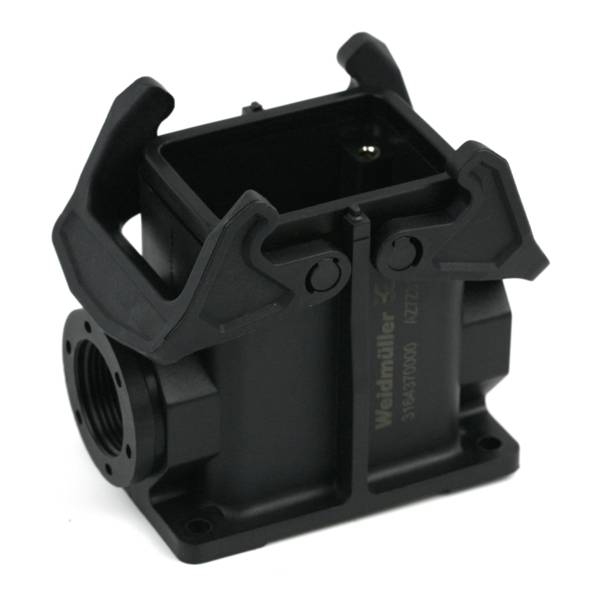

Weidmüller HDC 06B SBU 1M25 BP 3164370000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Case material
Plastic
Type
HDC 06B SBU 1M25 BP
Series
RockStar® HDC 06B
Manufacturer part #
3164370000
Datasheet (PDF)
Technical specifications
- Type
HDC 06B SBU 1M25 BP
- Product type
Socket enclosure
- Series
RockStar® HDC 06B
- Manufacturer part #
3164370000
- Features
+ transverse brace on the bottom part
1x cable entry (lateral)
metric fasteners
+ seal
- Case material
Plastic
- Factory colour
Black
- Connection
Side
- Content
1 pc(s)
- Width
57 mm
- Length
89 mm
IP65 (when installed)
- Max. temperature
125 °C
- Min. temperature
-40 °C
57 mm
75.1 mm
89 mm
FALSE
Black
Double locking levers
1
FALSE
FALSE
Plastic
-40-125 °C
FALSE
TRUE
Socket case
IP65
Plastic
Sideways
Base unit
Metric
V0
Documents & Downloads
Datasheet
Datasheet 3748400 Weidmüller HDC 06B SBU 1M25 BP 3164370000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748400 Weidmüller HDC 06B SBU 1M25 BP 3164370000 Socket enclosure 1 pc(s)
Description
The housing is perfectly protected thanks to a special die-cast alloy and a multi-stage sealing of the surface.
