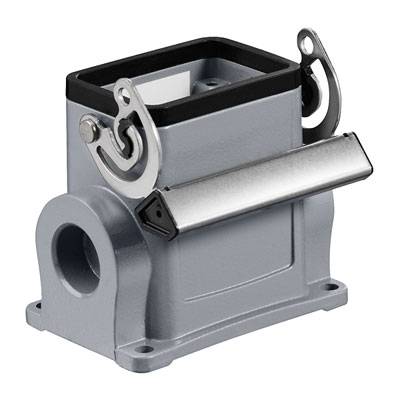

Weidmüller HDC 06B SLU 1PG16G 1652750000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG16
Case material
Aluminium, die cast
Type
HDC 06B SLU 1PG16G
Series
RockStar® HDC 06B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC06B SLU 1 PG 16 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 54 mm
- Length Housing: 60 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input top: 0
- Number of cable input side: 1
- Design: Standard
- size: 3
- Bracket design:
- Suitable for ModulPlug®: No
- Size Cable inputs: PG 16
- Upper part/Lower part/cover: Lower section
- Mounting dimensions Width: 70 mm
- Mounting dimensions Height: 40 mm
- Hole spacing Length A2: 70 mm
- Seal: NBR
- Width Socket C1: 54.5 mm
- Height Socket B1: 5 mm
- Type
HDC 06B SLU 1PG16G
- Product type
Socket enclosure
- Series
RockStar® HDC 06B
- Manufacturer part #
1652750000
- Features
+ longitudinal brace on the bottom part
Cable input (lateral)
+ thread
- Thread size
PG16
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
222 g
- Content
1 pc(s)
- Width
71.7 mm
- Height
54 mm
- Length
82 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
71.7
FALSE
54 mm
Grey
Single locking lever
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202889 Weidmüller HDC 06B SLU 1PG16G 1652750000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202889 Weidmüller HDC 06B SLU 1PG16G 1652750000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 3, protection class IP 65, socket housing, longitudinal brace on the bottom part, Standard, large cable inputs: PG 16. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
