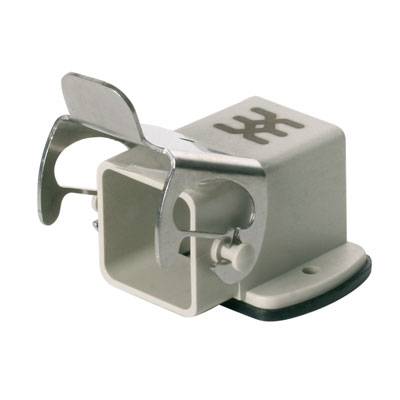

Weidmüller HDC 07A AWLU 1652420000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Plastic
Type
HDC 07A AWLU
Series
RockStar® HDC 07A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC07A AWLU
Technical specifications
- Width of housing C: 24.2 mm
- Height of housing B: 26.7 mm
- Length of housing: 41.5 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Material of locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 1
- Bracket design: Transverse bracket
- suitable for ModulPlug®: No
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 30 mm
- Hole distance Length A2: 30 mm
- Seal: NBR
- Width Socket C1: 42 mm
- Height Socket B1: 3 mm
- flammability class according to UL 94: V-0
- Packaging type
Piece
- Type
HDC 07A AWLU
- Product type
Enclosure extension
- Series
RockStar® HDC 07A
- Manufacturer part #
1652420000
- Features
+ transverse brace on the bottom part
Cable input (angled)
- Case material
Plastic
- Factory colour
Black
- Weight
23 g
- Content
1 pc(s)
- Width
36.5 mm
- Height
52.8 mm
- Length
65.5 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
37
TRUE
53 mm
66 mm
Beige
Double locking levers
FALSE
TRUE
Plastic
-40-125 °C
V0
TRUE
Housing extension
IP65
Plastic
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202873 Weidmüller HDC 07A AWLU 1652420000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 202873 Weidmüller HDC 07A AWLU 1652420000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-housing, size: 1, protection class IP65, extension casing, cross brace on the bottom part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
