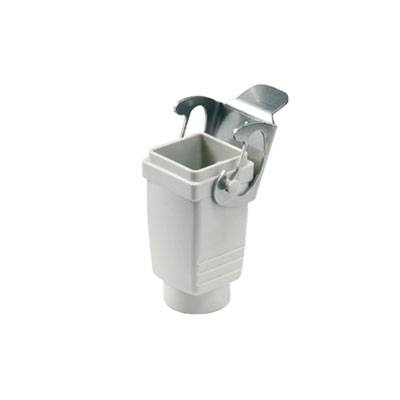

Weidmüller HDC 07A KOLU 1M20G 1788540000 Connector enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Thread size
M20
Case material
Plastic
Type
HDC 07A KOLU 1M20G
Series
RockStar® HDC 07A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC07A KOLU 1M 20 G
Technical specifications
- Wide housing C: 26.8 mm
- Height Housing B: 53.5 mm
- Length Housing: 26.5 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Material Locking element: Stainless steel
- , stainless steel Number of cable input top: 1
- Number of cable input side: 0
- Design type: Standard
- size: 1
- Bracket design: Transverse bracket
- suitable for ModulPlug®: No
- Size of cable inputs: M 20
- Upper part/cover: Lower section
- flammability class according to UL 94: V-0
- Type
HDC 07A KOLU 1M20G
- Product type
Connector enclosure
- Series
RockStar® HDC 07A
- Manufacturer part #
1788540000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
M20
- Case material
Plastic
- Factory colour
Grey
- Weight
26 g
- Content
1 pc(s)
- Width
36.5 mm
- Height
77.5 mm
- Length
26.7 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
36.5
TRUE
78 mm
27 mm
Beige
Double locking levers
0
FALSE
TRUE
Plastic
-40-125 °C
V0
Coupling housing
IP65
Plastic
Two-sided
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203720 Weidmüller HDC 07A KOLU 1M20G 1788540000 Connector enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203720 Weidmüller HDC 07A KOLU 1M20G 1788540000 Connector enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 1, protection class IP65, clutch housing, cross brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
